Major Tech smart 600A AC Clamp Meter
-
- Major Tech smart 600A AC Clamp Meter
- <strong>4000 count backlit LCD display
- Ø25mm Cable Clamp size
- Smart Mode automatically identifies DCV, ACV, Resistance and continuity
- Measurement of DC voltage and AC voltage up to 600V
- INRUSH Current Measurements

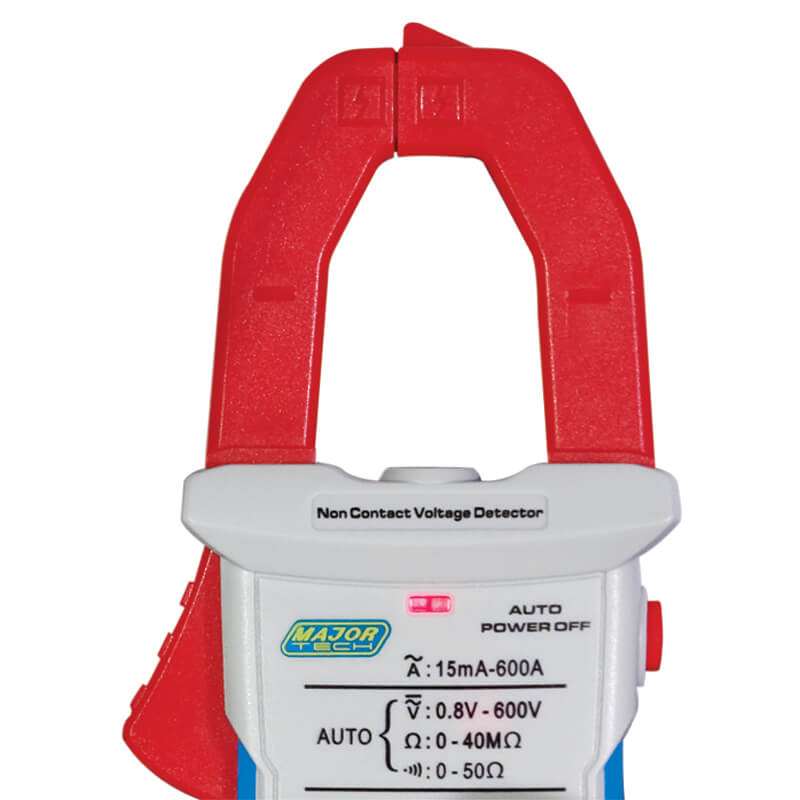

<li><strong>NCV – Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer</strong>
- Peak Mode and Data Hold function
- Auto Power Off
- 2 year warranty

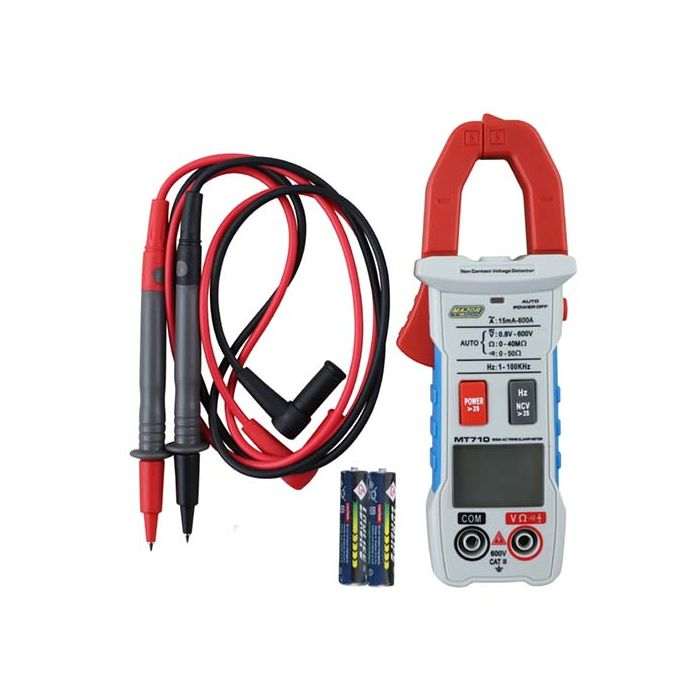

Accessories:
- Test Leads
- Carrying Case
- 2 x AAA Batteries
- Instruction Manual
R670.00 incl.VAT
Major Tech smart 600A AC Clamp Meter

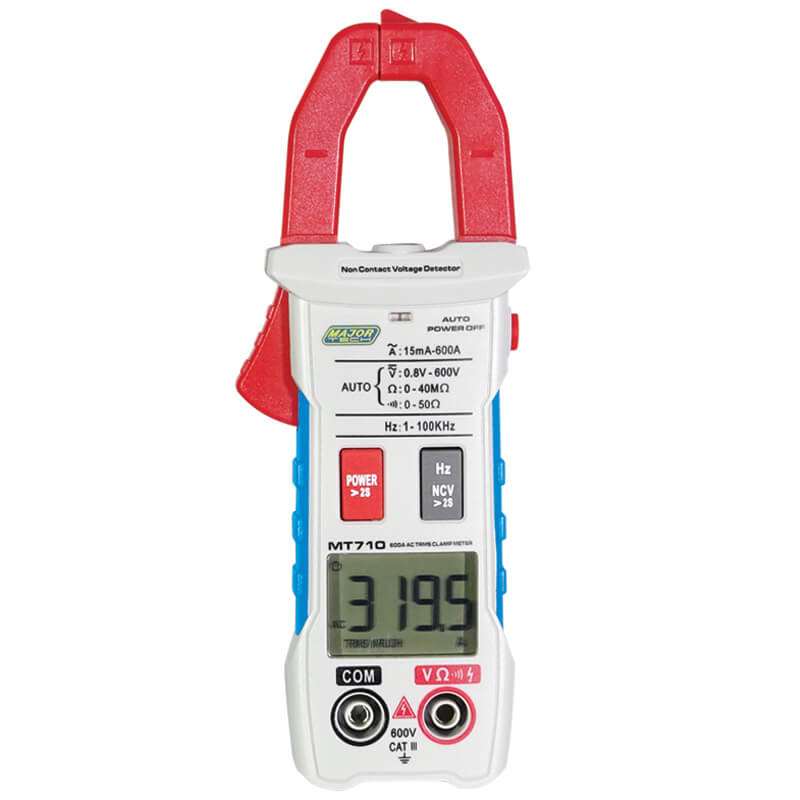

The MT710 is a CAT III 600V, 4000 count True RMS 600A AC digital clamp meter. With indication on a large backlit LCD display. Providing fast sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. The meter measures 600V AC/DC, frequency, resistance measurements, Inrush current and Peak Voltage value. Other features include, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for electricians, HVAC technicians and students studying electrical.
See also our 1500V DC Thermal Imaging Clamp Meter MT784
See our full range of major tech testers
| Weight | 0.100 kg |
|---|---|
| Dimensions | 17 × 6 × 3 cm |
| Function | Range | Resolution | Accuracy |
| th=”</yoastmark”>””281</yoastmark”>”>AC Current | 0.004A – 600A | 4mA | ±(2.5% + 8 Digits) |
| DC Voltage | “144”> 0.001V – 600V | 1mV | ±(0.5% + 3 Digits) |
| AC Voltage | idth=”144″> 0.001V – 600V | 1mV | ±(1% + 3 Digits) |
| Resistance | 0.001K? – 40M? | 0.001k? | ±(0.5% + 3 Digits) |
| Frequency | 0.001Hz – 100kHz | 0.001Hz | ±(0.1% + 2 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 40Hz-1kHz | ||
| Digital Display | 4000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Jaw Size | 25mm | ||
| Peak Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | ABS Moulding | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 172g | ||
| Dimensions | 172 x 64 x 32mm | ||
| Safety Specs | IEC61010-1 CAT IV 300V | ||
