Electric Vehicle Supply Equipment Adaptor MT290
SKU: MT290
Available Stock: Stock is Available
- Testing adaptor for Mode 3 supply equipment
- EV connection for Type 2 and Type 1
- Measuring terminals L1, L2, L3, N and PE
- Mains socket for connection to check an external load
- Single phase system with Max input voltage up to 250V
- Three phase system with Max input voltage up to 430V
- Separate phase indication by the LED lamps to indicate voltage present
- PE-Pre-test function
- Simulation of CP Error “E” and PE Error (Earth Fault)
- Rotary dials simulate PP State or CP State
- Works in conjunction with the MT390
2 Year Limited Warranty
Accessories:
- Hard Carrying Case
- Instruction Manual
R7,285.25 incl.VAT
Electric Vehicle Supply Equipment Adaptor MT290

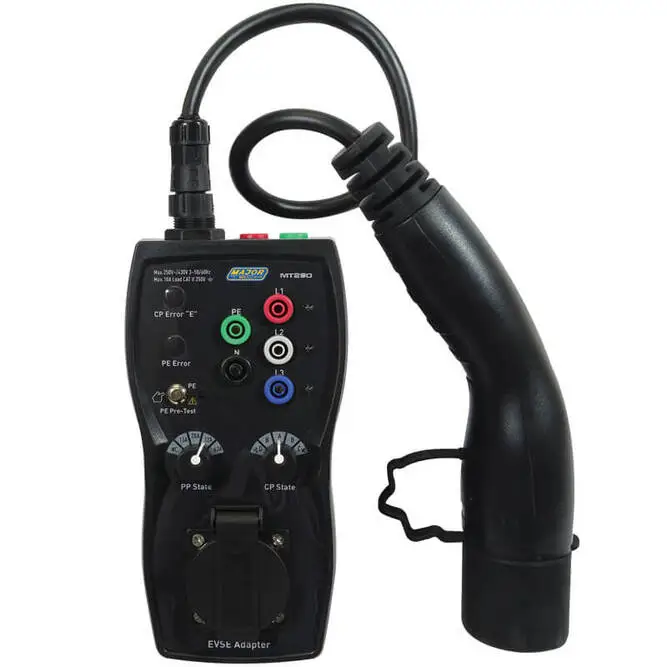

The MT290 EVSE Extender interfaces Electric Vehicle Supply Equipment (EVSE) to test installation sockets. It verifies electrical safety and functionality of both single‑phase and three‑phase EV charge points. This easy‑to‑use instrument, when paired with the MT390 or a similar meter, gives electrical contractors a universal tool. The tool designed to thoroughly test Mode 3 AC electric vehicle charging stations. In addition, the adaptor simulates the connection of an electric vehicle to a charging point under test. With the PE Pre‑Test safety feature, the PE conductor can be checked for dangerous voltage against earth before use.
Furthermore, a rotary switch for the Proximity Pilot (PP) state “Cable Simulation” allows simulation of various current capabilities of charging cables. Another rotary switch for the Control Pilot (CP) state “Vehicle Simulation” enables selection and simulation of different charging states. Measurements on live conductors can be performed using either the front‑mounted mains socket or the 4mm measuring terminals for L1, L2, L3, N, and PE on the EVSE adaptor. Finally, standard accessories include both Type 2 and Type 1 plugs, supplied with a durable hard carrying case for convenience.
See Also our Safety Voltage Detector 69kV AC MT269
See our full range of major tech testers
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 15 × 15 cm |
Specifications:
| Function | Range |
| Input Max Single Phase System | 250V |
| Input Max Three Phase System | 430V, 50/60Hz, |
| Input Max | 10A 200.0mV – 600V |
| EVC-200 Connector | AC charging mode 3. Suitable for Type 2 wall top contact or fixed cable with vehicle connection (type 2 7P operation phase) |
| EVC-100 Connector | AC charging mode 3. Suitable for Type 1 with vehicle connection (type 1 5P single-phase) |
| PE Pre-Test | Yesopen (Error condition or disconnection of plug)
13A Coding for maximum current of the EV cable |
| PP Stimulation | 20A32A EVSE is connected and can operate in any,
63A of these coding position. |
| CP Stimulation | states A (EV disconnect)states B (EV connected)
states C (EV charged without ventilation) states D (EV charged with ventilation) |
| CP Error “E” | On (CP short to PE via diode) / off |
| PE Error | On (PE error) / off |
| Size | 227 x 115 x 60mm |
| Weight | 832g (without connection cables) |
