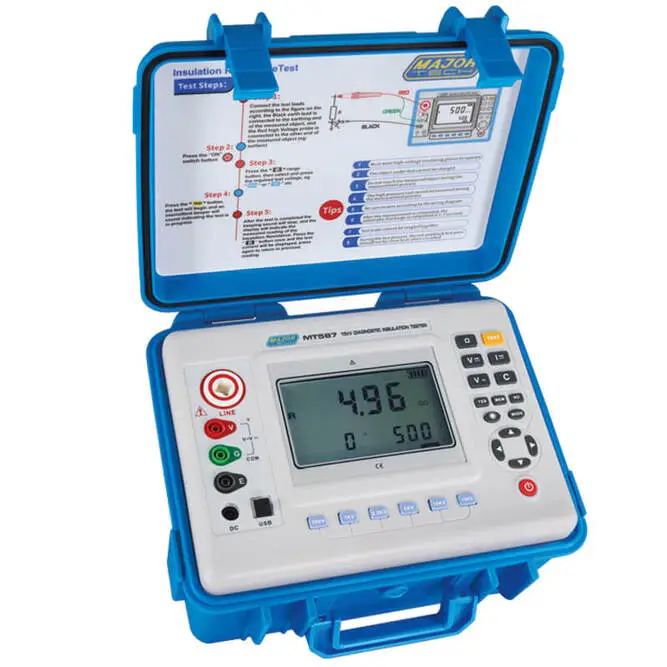

15kV Diagnostic Insulation Tester MT587
SKU: MT587
Available Stock: Stock is Available
- Insulation Test Voltages from 500V to 15kV
- Microprocessor controlled with 4-bit large backlit display
- Test insulation resistance up to 50TΩ
- Short circuit current up to 6mA
- DAR – Dielectric Absorption Ratio indication
- PI – Polarization Index indication
- Measurement of AC to 750V and DC voltage up to 1000V
- Auto ranging on all insulation ranges
- Adjustable test time from 1 minute to 30 minutes
- Auto hold to freeze measurement readings
- 500 measurement results can be saved in memory and recalled onto the display
- Alarm when the measured value larger or smaller than the alarm setting value
- Auto Power Off
2 Year Limited Warranty
Accessories:
- High Pressure Rod (red)
- High voltage test land (black and Green)
- Monitoring Software CD
- USB Communication Line
- Charger
- Instruction Manual
R43,495.00 incl.VAT
15kV Diagnostic Insulation Tester MT587
The MT587 15kV Digital High Voltage Tester measures from 500V DC to 15kV DC with precise increments. Up to 10kV, ranges increase in 50V steps, and beyond that, increments of 100V apply. After each test, the MT587 automatically discharges the circuit, ensuring safe operation. By using the range button switches, you can select six preset ranges: 500V, 1000V, 2500V, 5000V, 10kV, and 15kV. With insulation resistance up to 50TΩ, the microprocessor‑controlled MT587 serves as a powerful diagnostic tool for insulation testing on rotating machines, transformers, cables, high‑voltage generators, electric circuits, and surge arrestors. Its short‑circuit current output reaches up to 6mA, making it highly effective in demanding applications.
In addition, the MT587 measures Absorption Ratio and Polarization Index for both AC and DC voltage. You can save up to 500 test results in the meter’s memory and recall them directly on the LCD display. The large backlit LCD clearly shows insulation readings, measuring time, output voltage, and output current. Furthermore, the MT587 measures AC voltage up to 750V, DC voltage up to 1000V, DCA up to 6mA, and capacitance up to 50µA. Housed in a robust case, it is ideal for extended field use and powered by 12.6V rechargeable batteries. Finally, stored data transfers easily to a PC via optical USB and supplied software, streamlining reporting and analysis.
See our full range of major tech testers
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 15 × 15 cm |
Specifications:
| Function | Range | Resolution | Accuracy |
| Insulation 500V | 0.2 MΩ~2000GΩ | 0.001MΩ | ±3%rdg ± 5dgt |
| Insulation 1000V | 0.5MΩ~5000GΩ | 0.001MΩ | ±3%rdg ± 5dgt |
| Insulation 2500V | 1MΩ~1000GΩ | 0.01MΩ | ±3%rdg ± 5dgt |
| Insulation 5000V | 2MΩ~10TΩ | 0.01MΩ | ±3%rdg ± 5dgt |
| Insulation 10KV | 5MΩ~35TΩ | 0.01MΩ | ±3%rdg ± 5dgt |
| Insulation 15KV | 6MΩ~50TΩ | 0.01MΩ | ±3%rdg ± 5dgt |
| DC voltage | 0.0V~1000V | 0.1V | ±1.5%rdg±3dgt |
| AC voltage | 0.0V~750V | 0.1V | ±1.5%rdg±3dgt |
| DC current | 1mA – 1000pA | 1pA | ±30%rdg ± 5dgt |
| Capacitance | 10uf – 100nf | 0.1nf | ±10%fs.±5dgt |
| Basic condition | 23°C ± 5°C, below 75%RH | ||
| Rated voltage | 500V, 1000V, 2500V, 5000V, 10kV, 15kV | ||
| Test Voltage(V) | Rated voltage x (1±10%) | ||
| Output short-circuit Current | ≥6mA@15KV | ||
| Absorption, Ratio and Polarization Index Measurement | Â Yes | ||
| Power Supply | 12.6V rechargeable battery | ||
| Backlight | Yes | ||
| Display Mode | 4-bit large LCD display, grey screen backlight | ||
| LCD display size | 108mm x 65mm | ||
| Instrument size | 240mm x 188mm x 85mm | ||
| USB interface | Yes | ||
| Communication Line | USB communication line 1PC | ||
| Test Lead | High voltage probe red 3m, high voltage test lead black 1.5m, green 1.5m | ||
| Data Storage | 500 groups | ||
| Data Review | Yes | ||
| Overflow Display | Yes | ||
| Alarm Function | Alarm when the measured value larger or smaller than the alarm setting value | ||
| Instrument weight | 2750g (including battery) | ||
| Low Battery Display | Yes | ||
| Automatic shut-down | Automatic shutdown after 15 minutes | ||
| Insulation Resistance | ≥50MΩ (between Measuring line and housing) | ||
| Pressure Resistance | AC3kV / 50Hz 1min | ||
| Working Temperature and Humidity | -10°C to 50°C<85%RH | ||
| Storage Temperature and Humidity | -15°C to 55°C<90%RH | ||
| Safety Regulations | IEC61010-1, IEC1010-2-31, IEC61557-1,5,IEC60529 (IP54) pollution grade 2, CAT III 300V | ||
