Capacitors, Compressor Accessories, Compressors

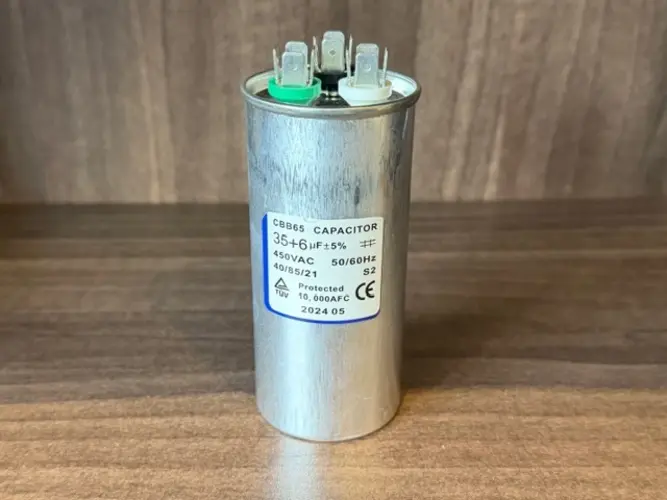

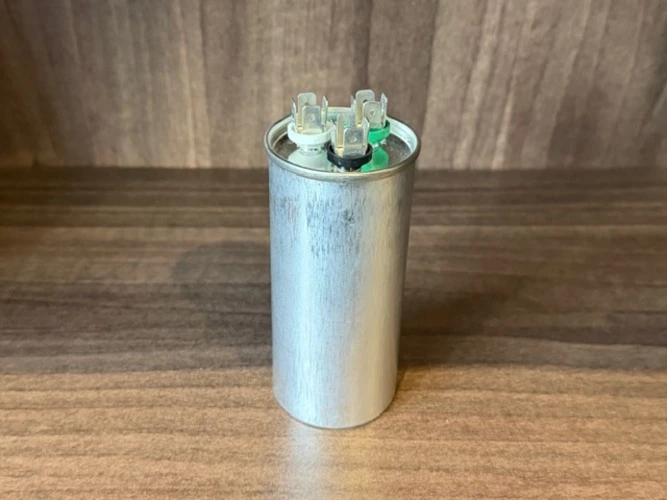

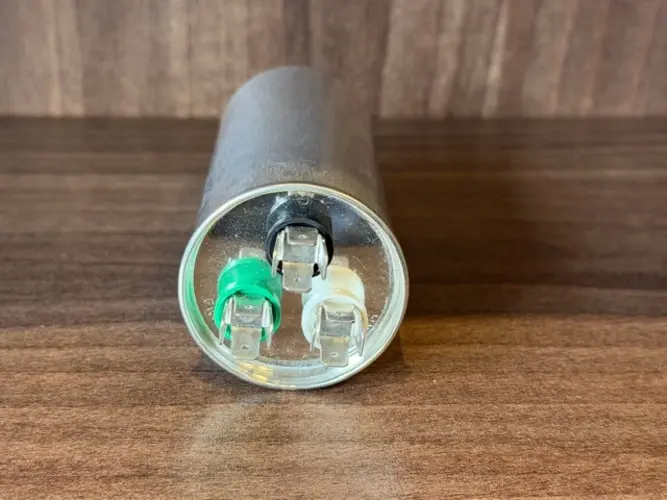

Starting and Running Capacitor 35/6UF
SKU: Cap35/1.5
Available Stock: Stock is Available
35/6uF
Run /start dual cap
| Product Name | Motor Capacitor |
| Model No. | CBB65A-1 |
| Dielectric Material | Metallized Polypropylene Film |
|
Housing Material |
Metal |
| Capacitance | 35+6uF |
| Tolerance | ±5% |
| Rated Voltage | 450V AC |
| Frequency | 50/60Hz |
| Body Dimension | 5 x 12cm/ 2″ x 4.7″ (D * H) |
| Operating Temperature | 40/70/21 |
| Color |
Silver Tone |
R263.29 incl.VAT
Starting and Running Capacitor 35/6UF
Dual Capacitor
Cap 35/6 UF +- 5 %
Start Capacitor (35uF): Provides a large surge of power for a few seconds to get the motor spinning, especially against inertia.
Run Capacitor (6uF): Stays in the circuit to improve the motor’s efficiency and smooth operation, reducing power consumption.
Dual Function: This single capacitor handles both tasks for motors with separate start/run windings, common in HVAC fans and compressors.Â
450v
50/60HZ
| Weight | 0.2 kg |
|---|---|
| Dimensions | 6 × 3 × 3 cm |
