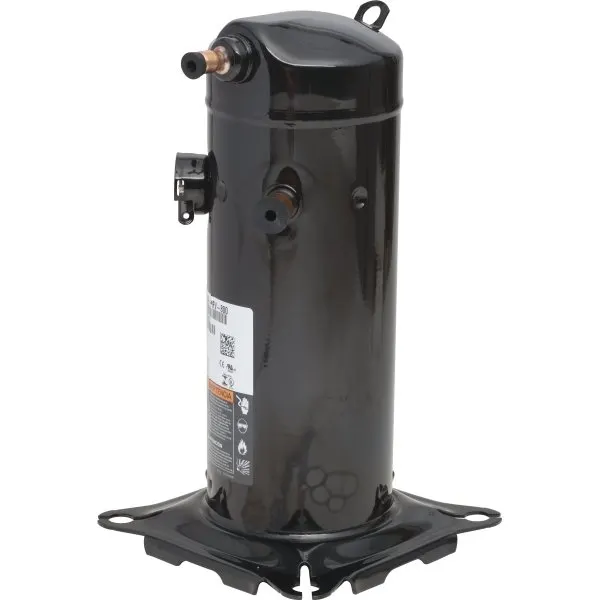

Scroll Compressor R22 130 000Btu ZR160
- 14 Horse power
- 130 000 Btu
- Refrigerants compatibilities R22, R407C, R404, R134a
Cooling Capacity 33.40 kW Power Input 10.30 kW COP 3.24 Displacement 36.4 m³/h
Overall Dimension / Net Weight 285 x 281 x 552 mm (W x L x H) / 64.9 kg Low/High Side PS 20/32 bar(g)
Maximum Operating Current 28 AÂ Â Sound Power 82 dBA Oil Type POEÂ Â Enclosure Case IP 21 (IEC 34)
A scroll compressor is a type of of positive displacement compressor. That uses two interlocking spiral scrolls to compress a gas, such as refrigeration or air. One scroll remains stationary while the other orbits in an eccentric motion. Drawing gas in, trapping it in pockets, and compressing it as it moves toward the center. They are known for their quiet, efficient, and reliable performance. Commonly used in air conditioning, refrigeration, and industrial applications
Quiet operation.The continuous compression cycle and fewer moving parts. Result in a much quieter operation compared to traditional reciprocating compressors
Reliability: With a simple design and fewer components, scroll compressors are generally very reliable.
Continuous output: Multiple pockets of refrigerant are being compressed simultaneously, providing a nearly continuous output of compressed gas.
Scroll Compressor R22 130 000Btu ZR160
For a full range of scroll compressorÂ
