Appliance spares, Washing machine / Tumble dryer / Dish washer
Samsung Washing Machine Gearbox Assembly
SKU: TSS21
Available Stock: Stock is Available
Universal partÂ
Works on samsung
WT80S2P,
WT13J7P,
WT10S2P,
WT13S2,
WT13S2P,
WT10J7 )
R532.36 incl.VAT

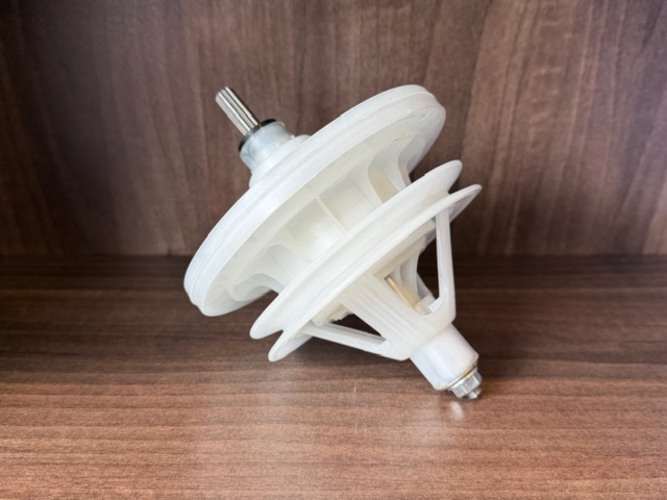

Samsung Washing Machine Gearbox Assembly
A Samsung washing machine gearbox assembly is a critical component that transfers power from the motor to the drum or agitator in top-loader models. It acts as a transmission system, adjusting speed and torque to enable effective washing and high-speed spinning cycles. It is used for driving the tub and agitator/pulsatroe during different phases of the laundry cycle.Â
- Function: It converts the motor’s high-speed rotation into lower-speed, higher-torque movement for washing, and high-speed, lower-torque movement for spinning.
- Key Components: The assembly typically includes the gearbox, pulley, and sometimes a clutch mechanism to switch between washing and spinning.
- Common Applications: Primarily used in Samsung top-loader models (Samsung WT80S2P, WT13J7P, WT10S2P, WT13S2, WT13S2P, WT10J7 )
- Symptoms of Failure: A faulty gearbox may result in the washing machine not agitating, improper spinning, or making excessive, noisy, or grinding sounds during operation
View all our appliance sparesÂ
| Weight | 2 kg |
|---|---|
| Dimensions | 25 × 25 × 20 cm |
