Major tech clamp meter 600A AC/DC MT730

Name: Major tech clamp meter 600A AC/DC MT730
SKU: MT730
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: MT730
Available Stock: Stock is Available

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Add to wishlist

Major tech clamp meter 600A AC/DC MT730

6000 count backlit LCD display
Ø33mm Cable Clamp size<br />Measurement of DC voltage and AC voltage up to 1000V
Capacitance to 100mF
Temperature measurement from -20⁰C to 1000⁰C
INRUSH Current Measurements
VFD – Variable Frequency Drive voltage value
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test<br /><strong>Peak Mode and Data Hold function
Auto Power Off

R2,019.00 incl.VAT

Major tech clamp meter 600A AC/DC MT730

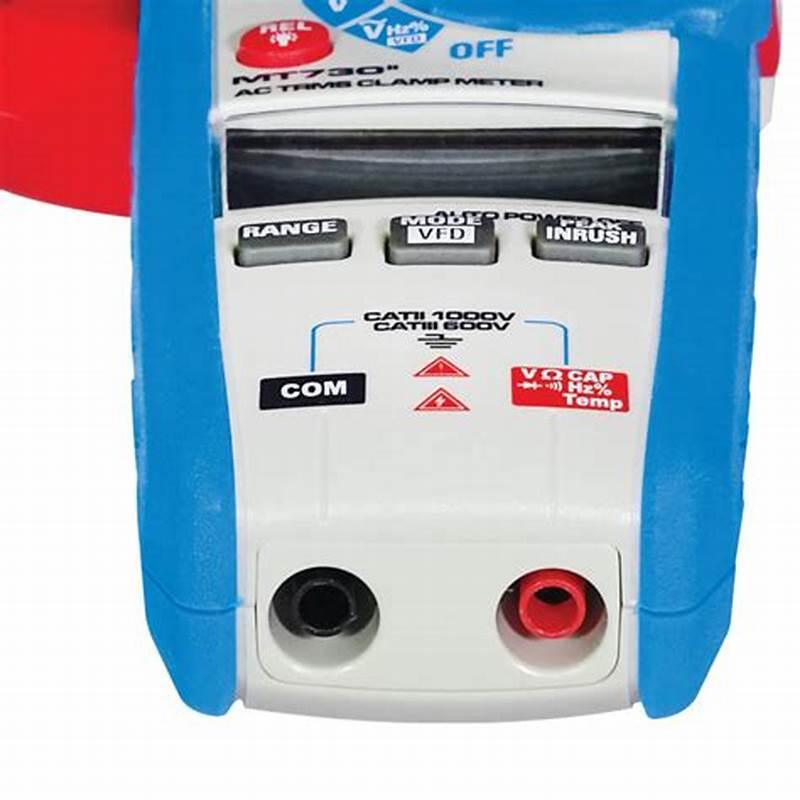

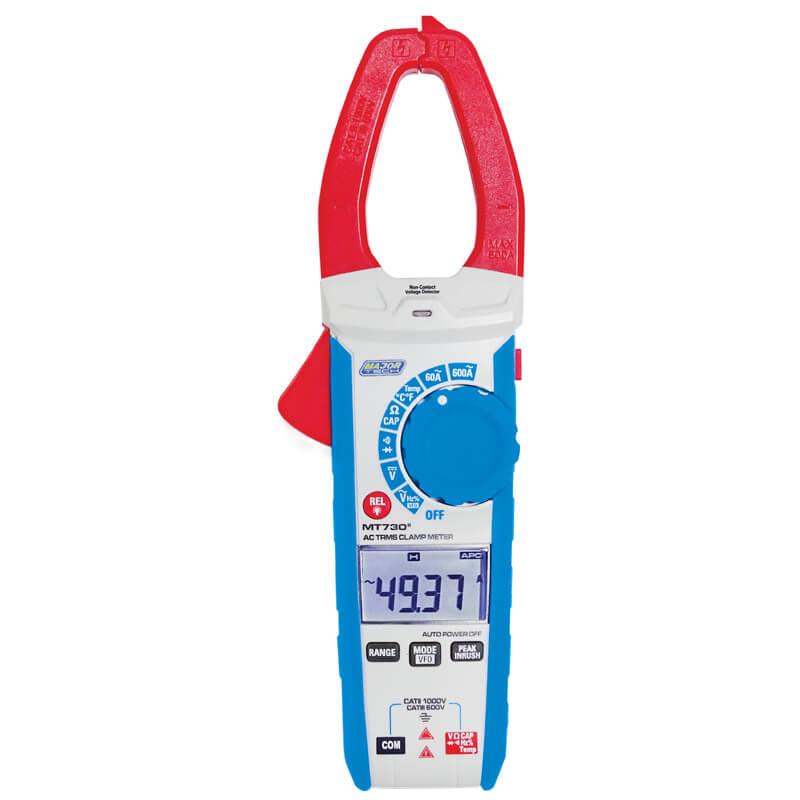

The MT730 is a 600A AC TRMS Clamp Meter, with indication on a large 6000 count backlit LCD display. Providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

Major tech clamp meter 600A AC/DC MT730

See our full range of major tech testers

SKU: MT730 Categories: Major Tech - Clamp meter, Major Tech Meters, Sales Items, Tools and Multi Meters

Weight	1 kg
Dimensions	23 × 7 × 4 cm

er=”1″ width=”652″>

±(1% + 5 Digits)

Function	Range	Resolution	Accuracy
AC Current	0.01A – 600.0A	10mA	±(2.0% + 8 Digits)
DC Voltage

1mV – 1000V1mV±(0.9% + 3 Digits)

AC Voltage1mV – 1000V1mVResistance0.1Ω – 60.00MΩ0.1Ω±(1.5% + 2 Digits)Frequency10Hz – 100kHz1HZ±(1.0% + 5 Digits)Capacitance0.1nF – 99.99mF0.01nF±(3.0% + 5 Digits)Temperature-20 to 1000°C0.1°C±(3% + 3.0°C Digits)Duty Cycle20.0% to 80.0%0.001±(1.2% + 10 Digits)True RMS MeasurementsACV, ACAAC Bandwidth50 – 1000HzDigital Display6000Non-Contact Voltage (NCV)YesOverrange IndicationYesContinuityYesDiode TestYesJaw Size33mmInput Impedance>10MΩ DCV & >10M? VACMin MaxYesPeak HoldYesData HoldYesBack LightYesEnclosureDouble injection mouldingLow Battery IndicationYesBatteries3 x AAAWeight318gDimensions239 x 72 x 40mmSafety SpecsIEC61010-1 CAT III 600V
