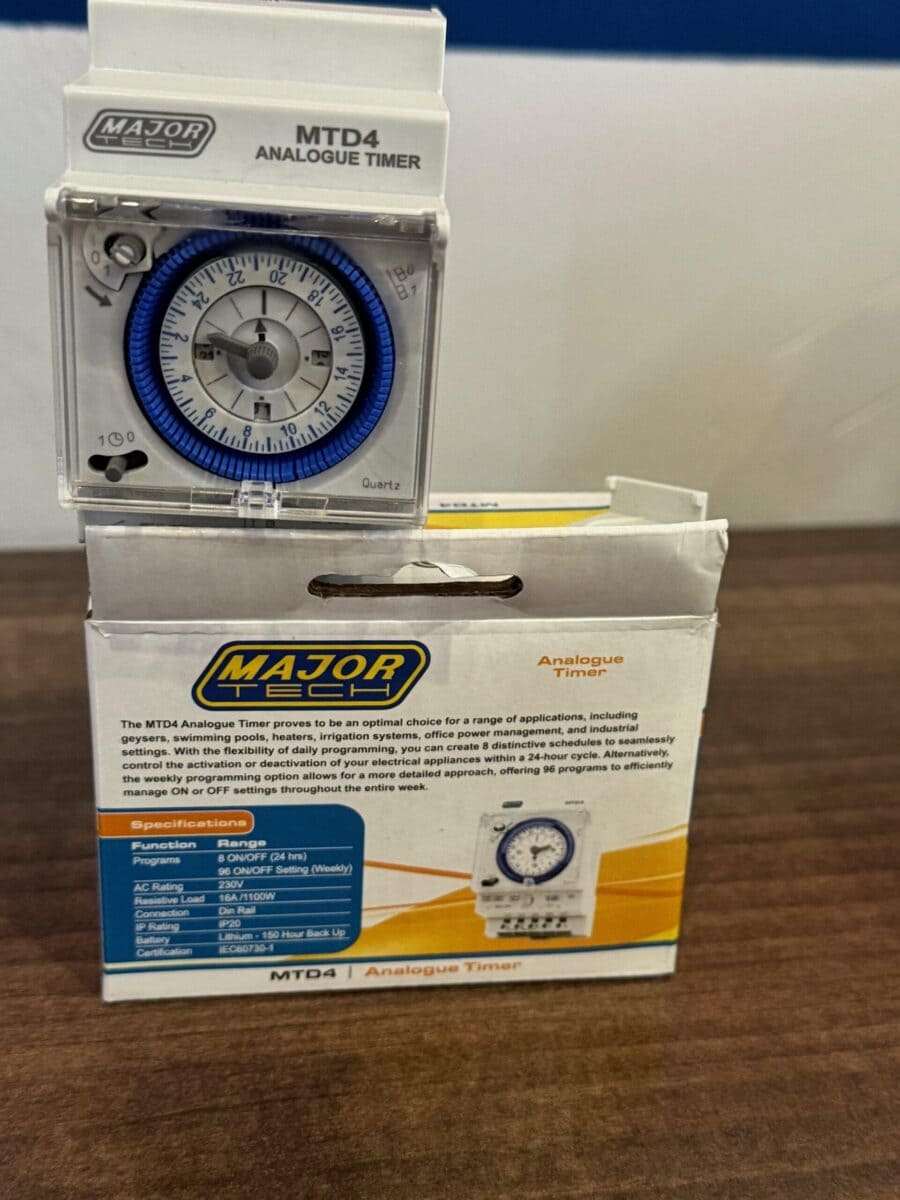

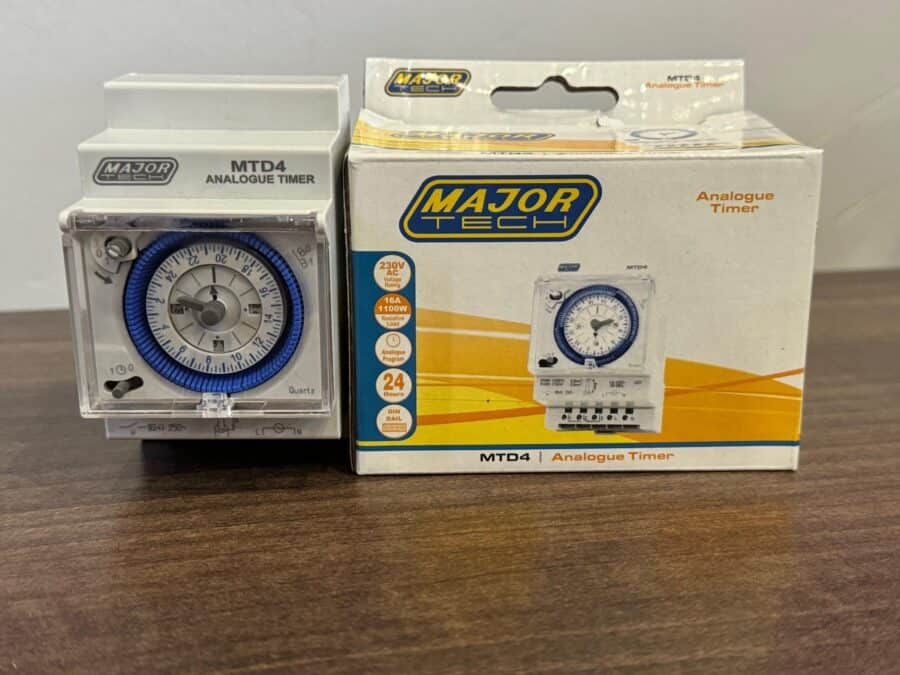

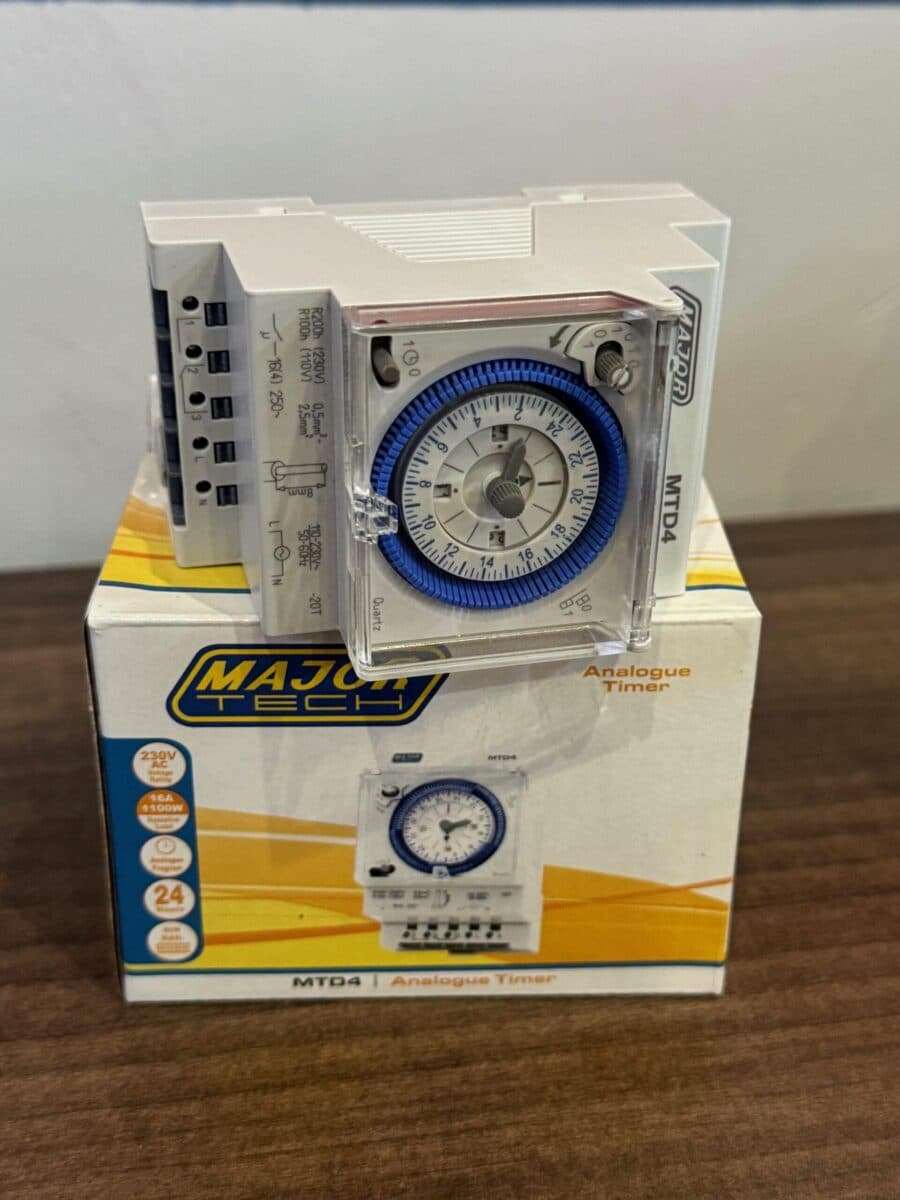

Major tech Analogue timer

Major tech Analogue timer

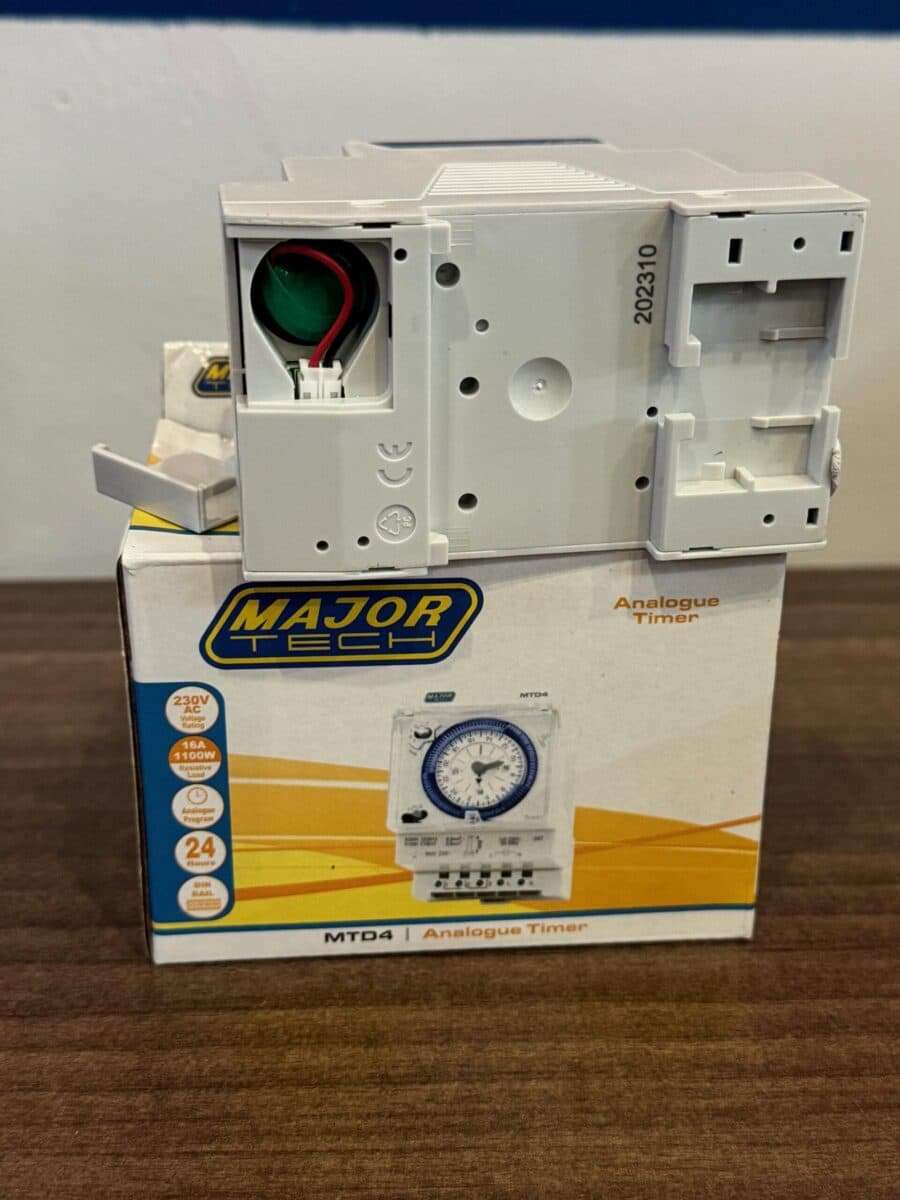

The MTD4 Analogue timer is ideal for geysers , swimming pools, heaters, irrigation , office power , home or industrial. Also works great on cold rooms and freezer rooms. The timer can be set daily with 8 ON/OFF programs to control appliances in 24 hours or set weekly. With 96 programs to control ON or OFF in one weeks. the timer also comes with a back up batter with a very long life.

Major tech Analogue timer

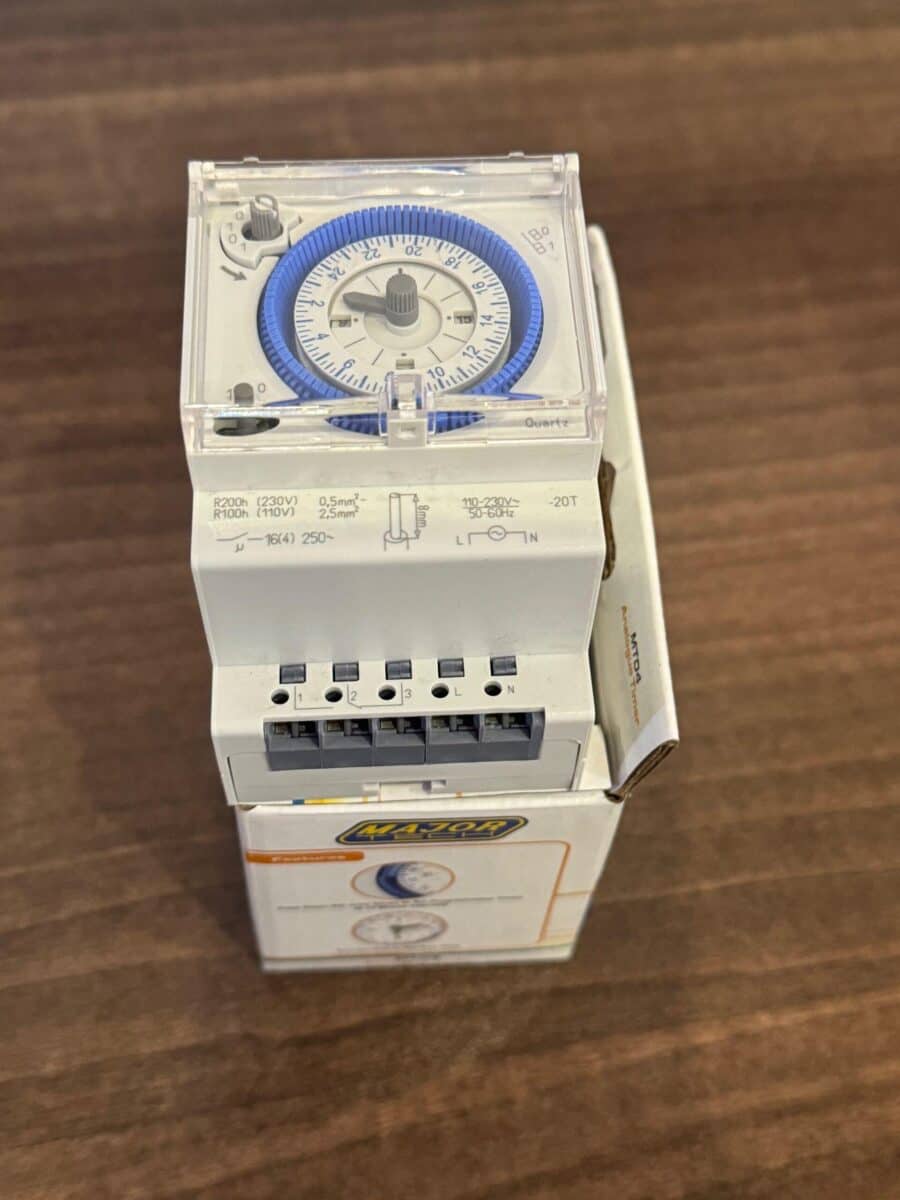

• Set the current time: Rotate the dial with the arrow to the current time. Use the hand to adjust hours and minutes by turning it clockwise or counter-clockwise.
• Set ON/OFF periods:
  • Push up the pins for the time periods you want the connected device to be OFF.
  • Pull down the pins for the time periods you want the connected device to be ON.
  • Since each pin represents 15 minutes, you will need to use at least two pins for each ON or OFF segment (e.g., for a full hour, you would use four pins).
• Set the switch mode: Use the switch on the timer (usually at the bottom left) to select the mode:
  • AUTO: The timer operates based on the pins you have set.
  • PERM ON: The device will stay permanently ON.
  • PERM OFF: The device will stay permanently OFF
