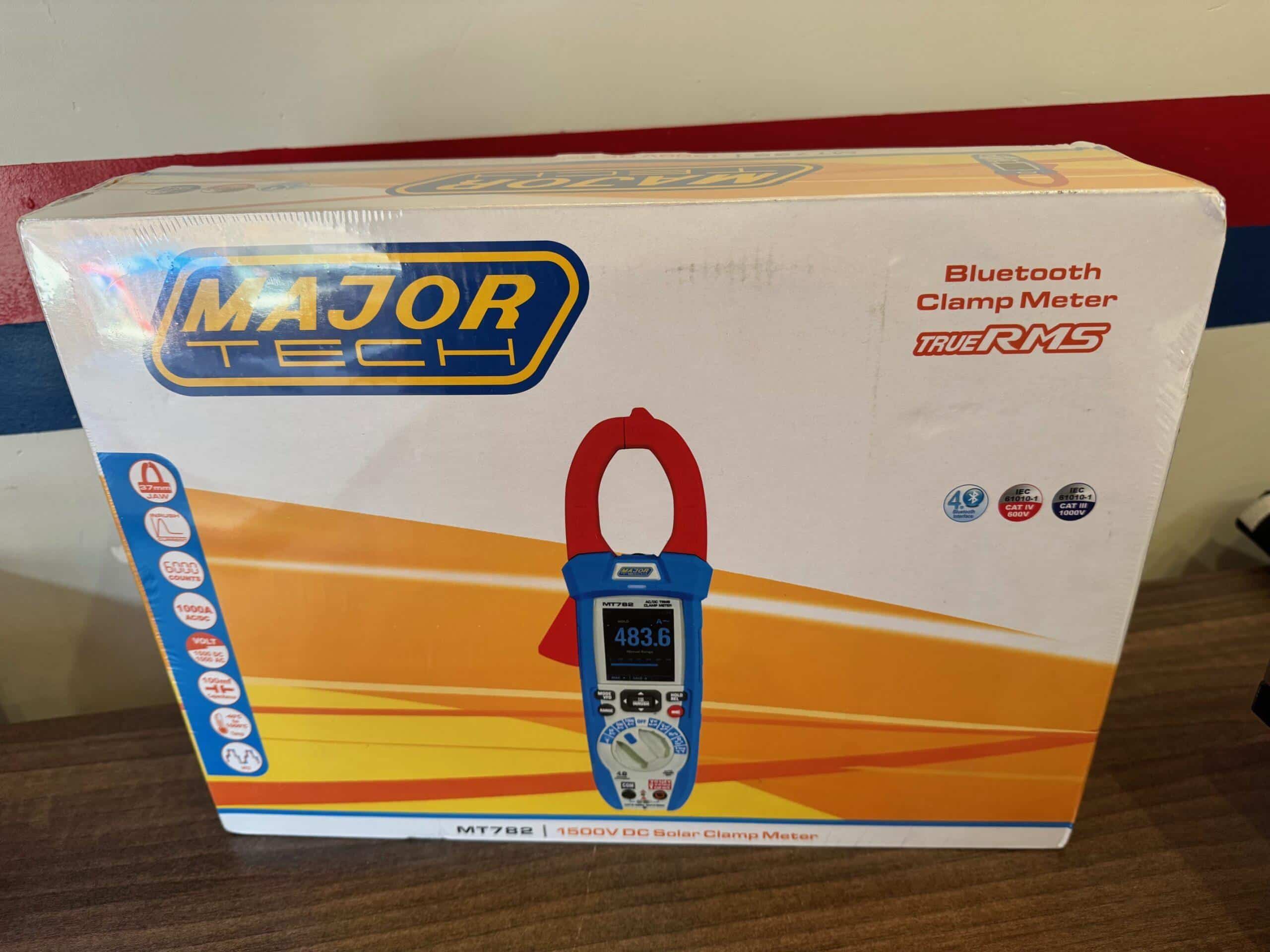

Major tech 1500V DC Solar Clamp Meter
SKU: MT782
Available Stock: Stock is Available
Tong tester
model: MT782

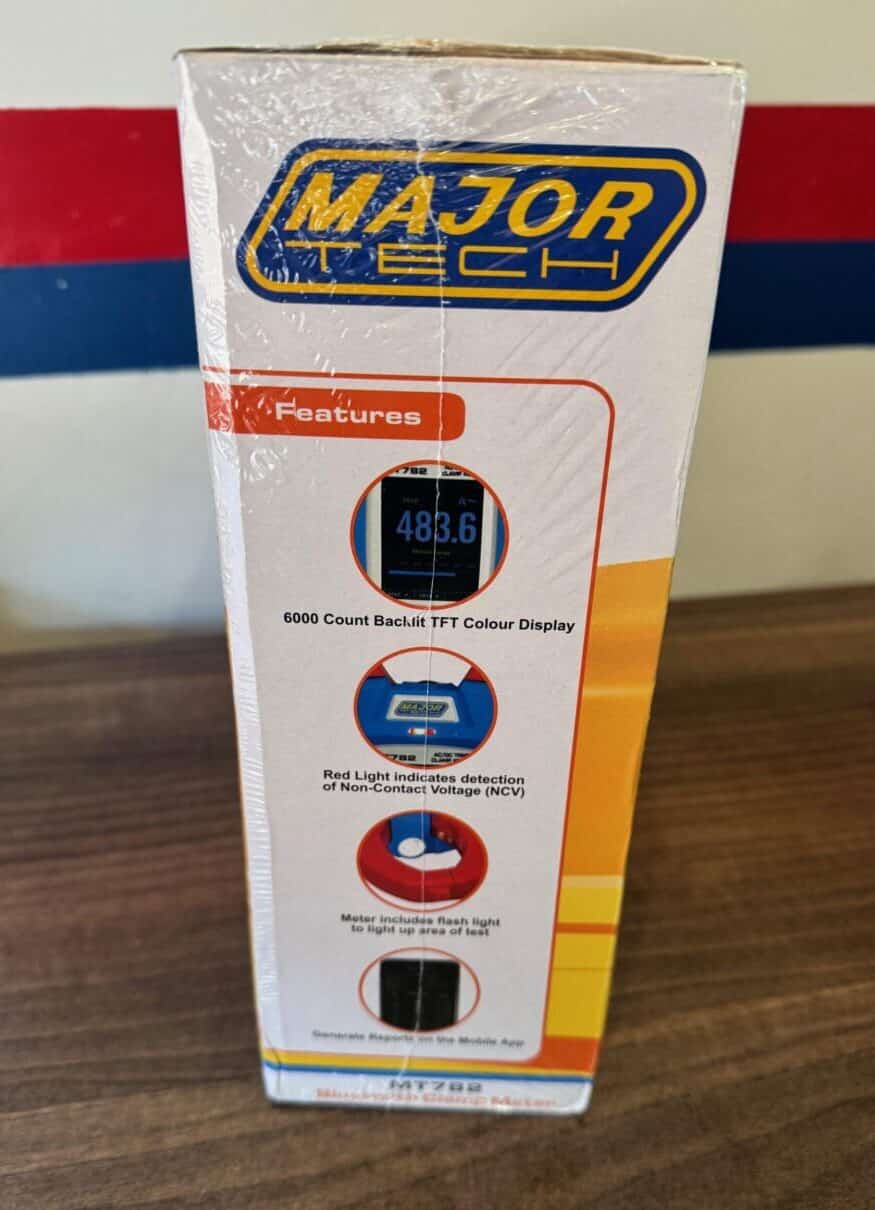

Features:
- 6000 count 2.4” TFT Colour LCD display
- Ø37mm Cable Clamp size
- 1000A AC/DC
- 1500V DC / 1000VAC
- AC+DC TRMS Voltage 1000V
- INRUSH Current Measurements
- Capacitance to 100mF
- Resistance to 60MΩ
- Frequency to 10MHz
- K-type Temperature -40⁰C to 1000⁰C
- Logging function with Trend Capture
- NCV – Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Max, Min and Average with Time Stamp
- Optional MT740 Flexible Coil Clamp for measurement to 3000A AC
R8,000.00 incl.VAT
Major tech 1500V DC Solar Clamp Meter

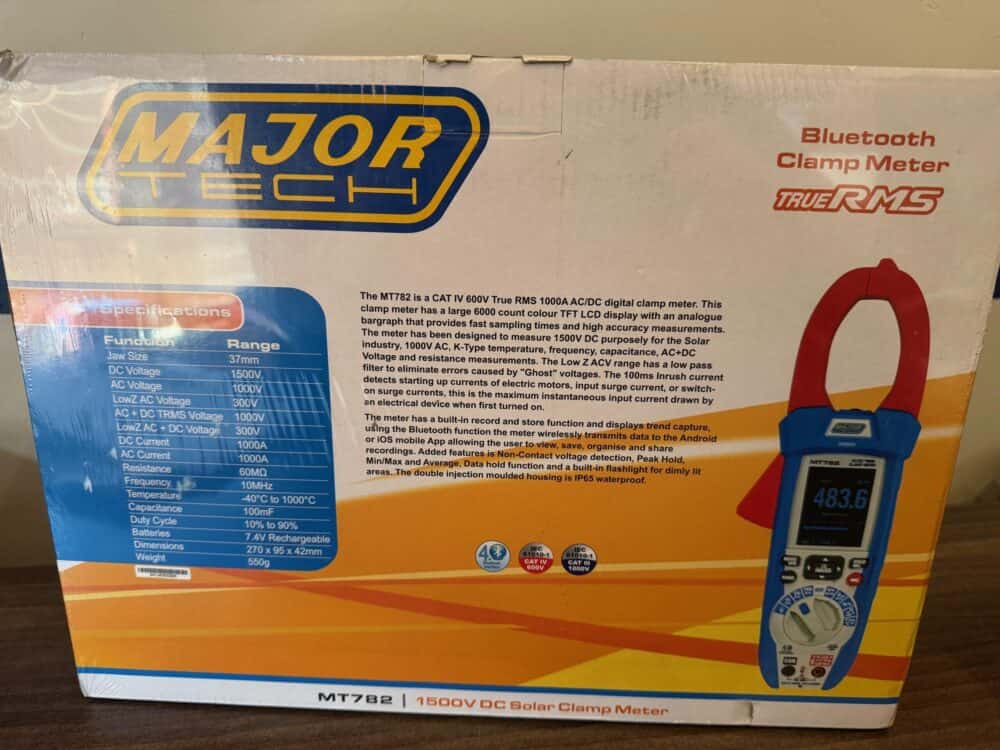

The MT782 is a 1500V DC Solar Clamp Meter. This clamp meter has a large 6000 count colour TFT LCD display. With an analogue bargraph that provides fast sampling times and high accuracy measurements. The Solar Clamp Meter has been designed to measure 1500V DC purposely for the Solar industry, 1000V AC, K-Type temperature, frequency, capacitance, AC+DC Voltage and resistance measurements. The Low Z ACV range has a low pass filter to eliminate errors caused by “Ghost” voltages.
The 100ms Inrush current detects starting up currents of electric motors. Input surge current, or switch on surge currents. This is the maximum instantaneous input current drawn by an electrical device when first turned on.
This Solar Clamp Meter has a built-in record and store function and displays trend capture. Using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App. Allowing the user to view, save, organise and share recordings. Added features is Non-Contact voltage detection, Peak Hold, Min/Max and Average, Data hold function and a built-in flashlight for dimly lit areas. The Solar Clamp Meter has double injection moulded housing and is IP65 waterproof. The MT782 auto powers off when the clamp meter is not in use.
Optional MT740 Flexible Coil Clamp for measurement to 3000A AC
Accessories:
Hard Carrying Case
Test Leads
Temperature Probe
K-Type Adaptor
Instruction Manual
Rechargeable Li-ion Batteries
Battery Charger
See our full range of major tech testers
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 13 × 10 cm |
Additional information
<td class=”woocommerce-product-attributes-item__value”>± (0.8% + 8 Digits)
<tr class=”woocommerce-product-attributes-item woocommerce-product-attributes-item–attribute_ac-voltage-resolution”>AC voltage Resolution1mV&amp;amp;amp;amp;amp;amp;amp;amp;amp;amp;lt;/p>
<th class=”yoast-text-mark”>ass=””DC”>
| class=”woocommerce-product-attributes-item__label”>DC voltage | 600.0mV – 1500V |
|---|---|
| DC Voltage Resolution | s=”yoast-text-mark”>s=”woocommerce-product-attributes-item__value”>0.1mV |
| ss=”woocommerce-product-attributes-item__label”>AC voltage</th> | 6.000V – 1000V |
| AC voltage Accuracy | ± (1.2% + 5 Digits) |
| AC + DC TRMS voltage | 6.000V – 1000V |
| AC + DC TRMS voltage Resolution | 1mV |
| AC + DC TRMS voltage Accuracy | ± (2.5% + 20 Digits) |
| DC Current | 600.0A – 1000A |
| DC Current Resolution | 0.1A |
| DC Current Accuracy | ± (2.5% + 5 Digits) |
| AC Current | 60A – 1000A |
| AC Current Resolution | 0.1A |
| AC Current Accuracy | ± (2.5% + 8 Digits) |
| Flexi Coil AC Current | 30.00A – 3000A |
| Flexi Coil AC Current Resolution | 0.01A |
| Flexi Coil AC Current Accuracy | ± (3% + 5 Digits) |
| Duty Cycle | 10.0% – 90.0% |
| Duty Cycle Resolution | 0,1% |
| Duty Cycle Accuracy | ± (1.2% + 8 Digits) |
| Resistance | 600.0Ω – 60.00MΩ |
| Resistance Resolution | 0.1Ω |
| Resistance Accuracy | ± (1.0% + 10 Digits) |
| Frequency | 60.00Hz – 10.00MHz |
| Frequency Resolution | 0.01Hz |
| Frequency Accuracy | ± (2.0% + 5 Digits) |
| Capacitance | 60.00nF – 100.0mF |
| Capacitance Resolution | 0.01nF |
| Capacitance Accuracy | ± (3% + 20 Digits) |
| Temperature K Type | -40 to 1000°C |
| Temperature K-Type Resolution | 0.1°C |
| Temperature K Type Accuracy | ± (1.5% + 3°C) |
| Continuity | Yes |
| Diode test | Yes |
| True RMS Measurements | ACV, ACA |
| AC Bandwidth | 50Hz to 60Hz |
| Digital Display | 6000 TFT |
| Bargraph | Yes |
| Bluetooth | Yes |
| Records events and Trends | Yes |
| Non-Contact Voltage (NCV) | Yes |
| Overrange indication | Yes |
| Input impedance | >10MΩ DCV & VAC |
| Min Max | Yes |
| Peak hold | Yes |
| Data Hold | Yes |
| Enclosure | Injection moulded case |
| Low battery indication | Yes |
| Power source | 7.4V Rechargeable |
| Weight | 550g |
| Dimensions | 270 x 95 x 42mm |
| Safety Specs | IEC61010-1 CATIV 600V |
