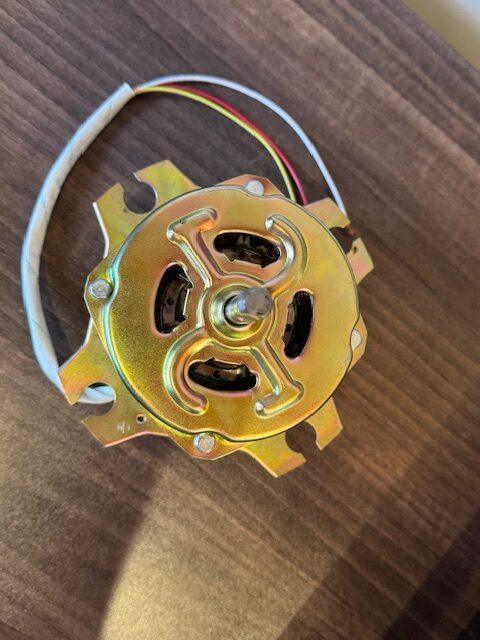

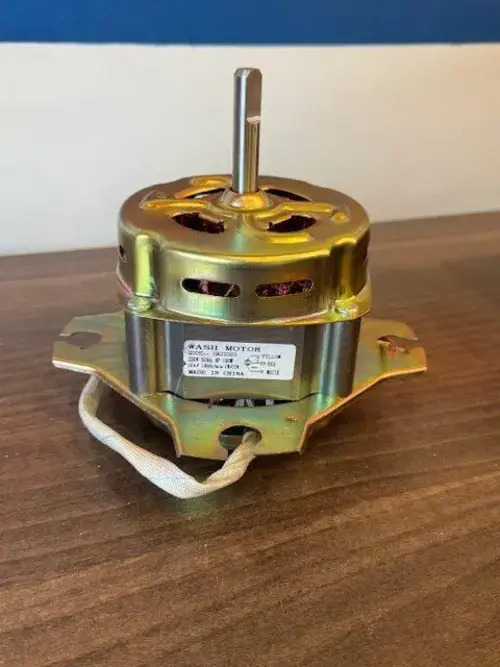

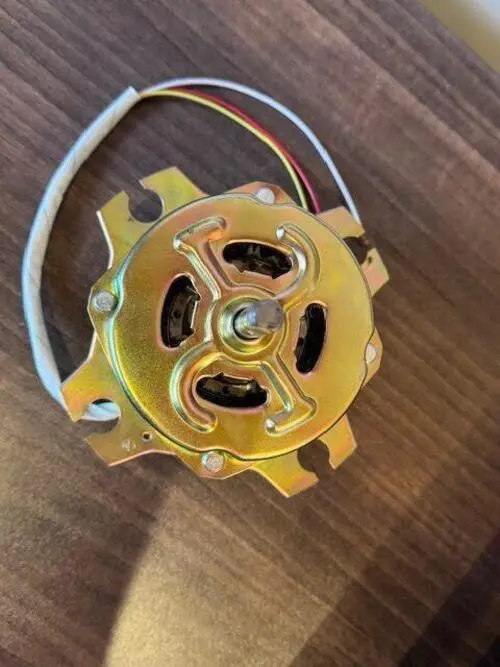

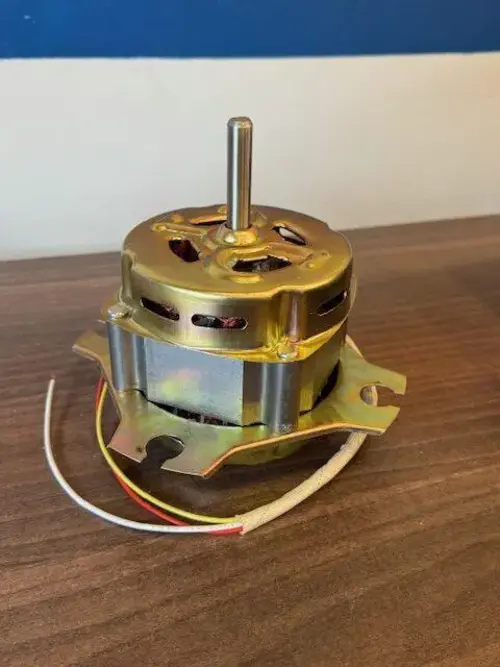

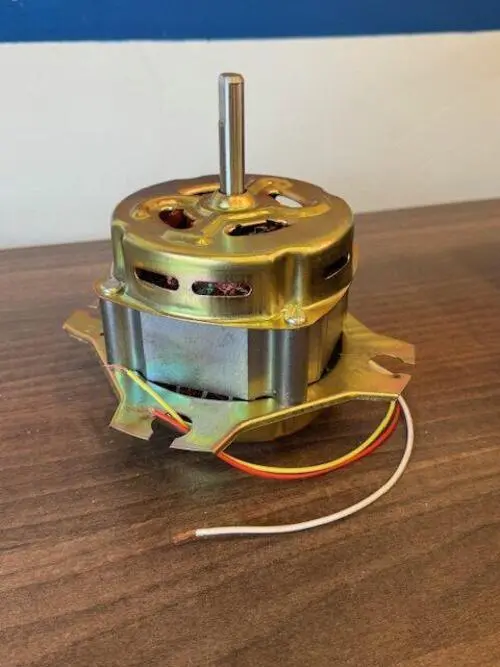

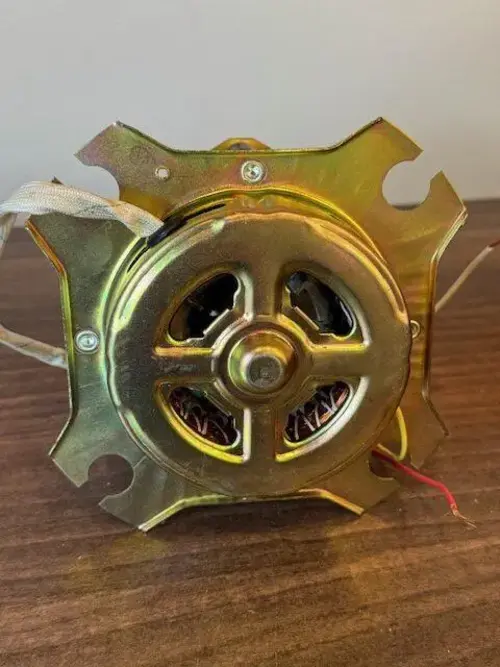

DEFY Washing Machine Wash Motor
SKU: XD-160-B/HA22003
Available Stock: Stock is Available
Brand defy
Washing masjien motor
220 – 240 v
50 HZ
Capacitor 12 UF/ 450v ( not included)
160w
This is a universal part not OEM
make sure cap is correct sizeÂ
R430.00 incl.VAT
DEFY Washing Machine Wash Motor
Suitable For : DTT146, DTT148, DTT151, DTT164, DTT165, DTT161, DTT171, DTT172, DTT153, DTT154, DTT162, DTT163, DTT152, DTT156
Axial (shaft) size
Height 52 mm
Diameter 11.8 mm
Motor size without brackets
Height 105 mm
Diameter 110 mm
DEFY Washing Machine Wash Motor
Agitation: The motor’s primary function is to rotate the drum’s wash paddle or agitator, causing the clothes to move through the water and detergent.
Drum rotation: It drives the rotation of the washing machine’s drum during the wash cycle.
Forward and reverse motion: The motor can be electronically controlled to switch the field winding to allow for forward and reverse rotation, which is essential for effective washing.
We have a full rang of appliance spare view them here
| Weight | 5 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
Based on 1 review
Add a review
You must be logged in to post a review.
Shaun –
the size was a bit different so had to do some costume work
Shaun –
