Commercial Compressor - R404, Compressors

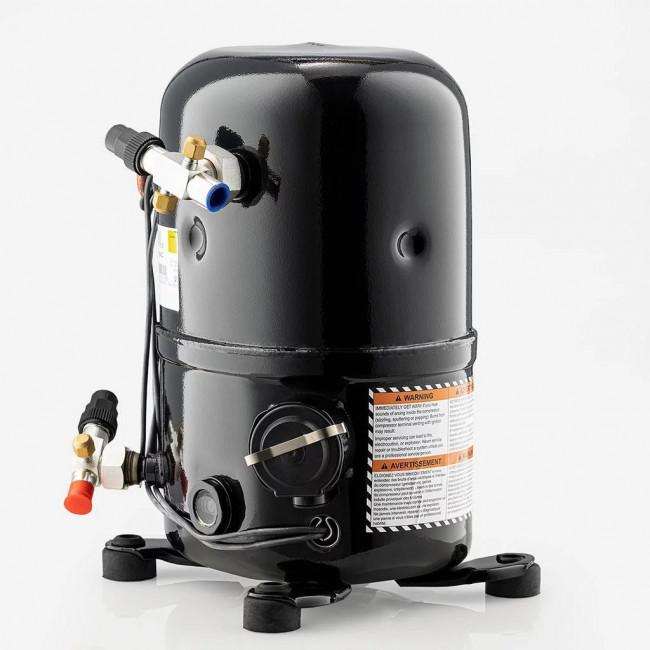

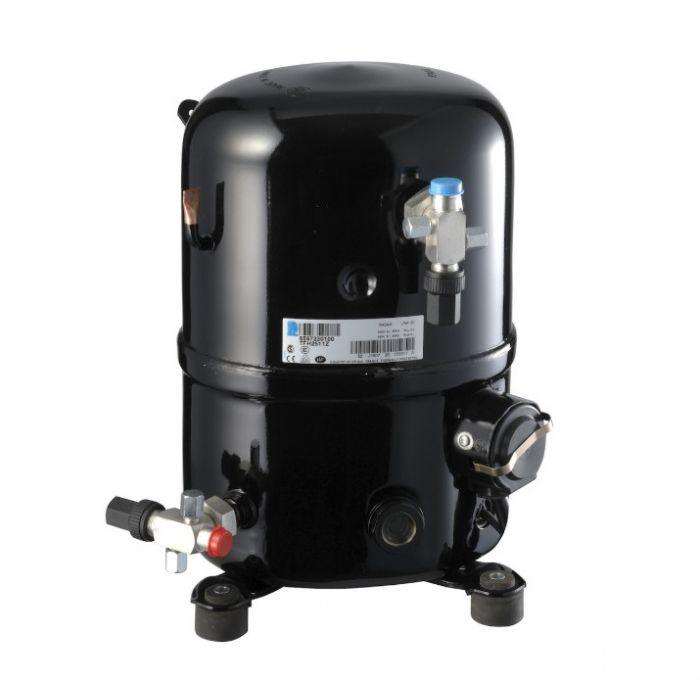

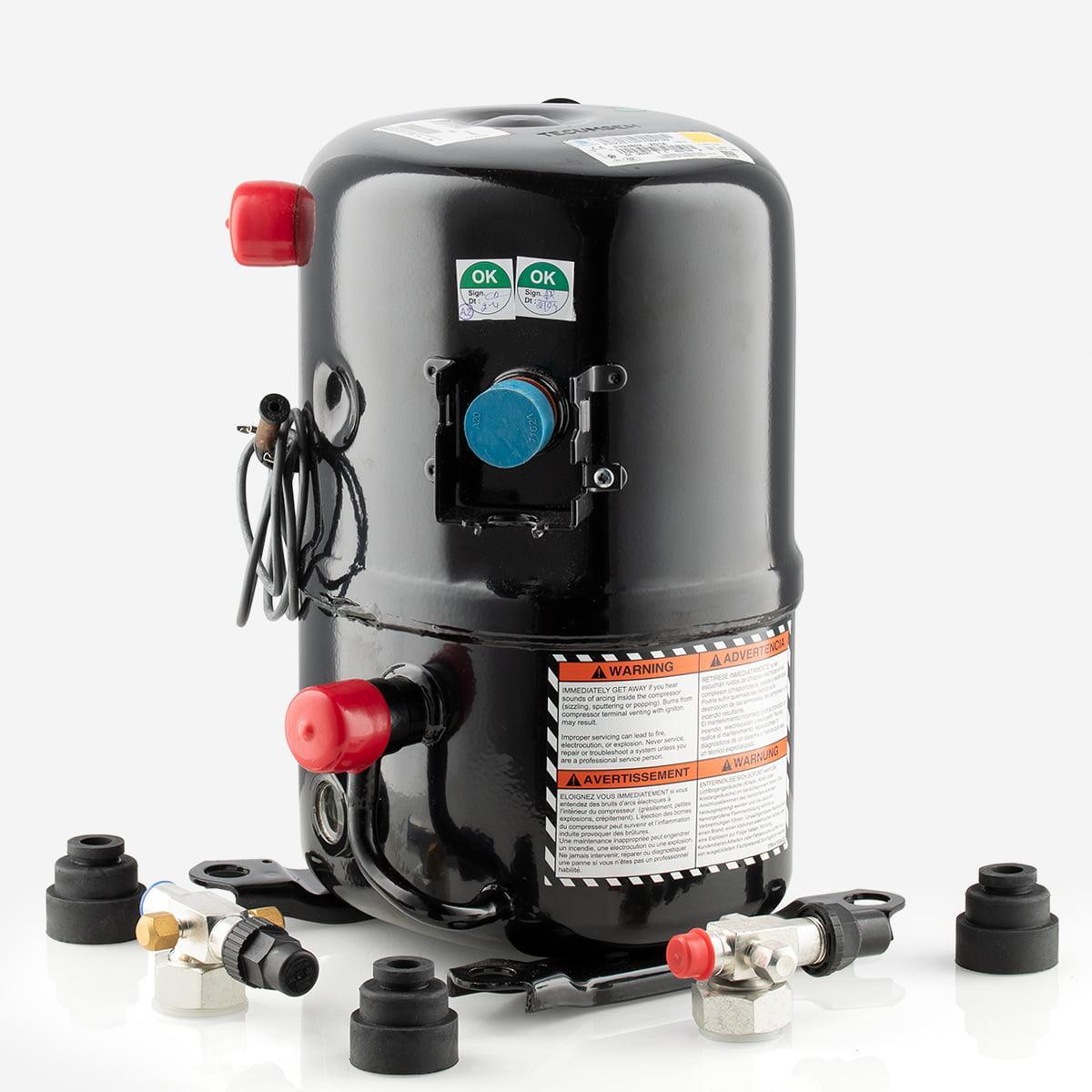

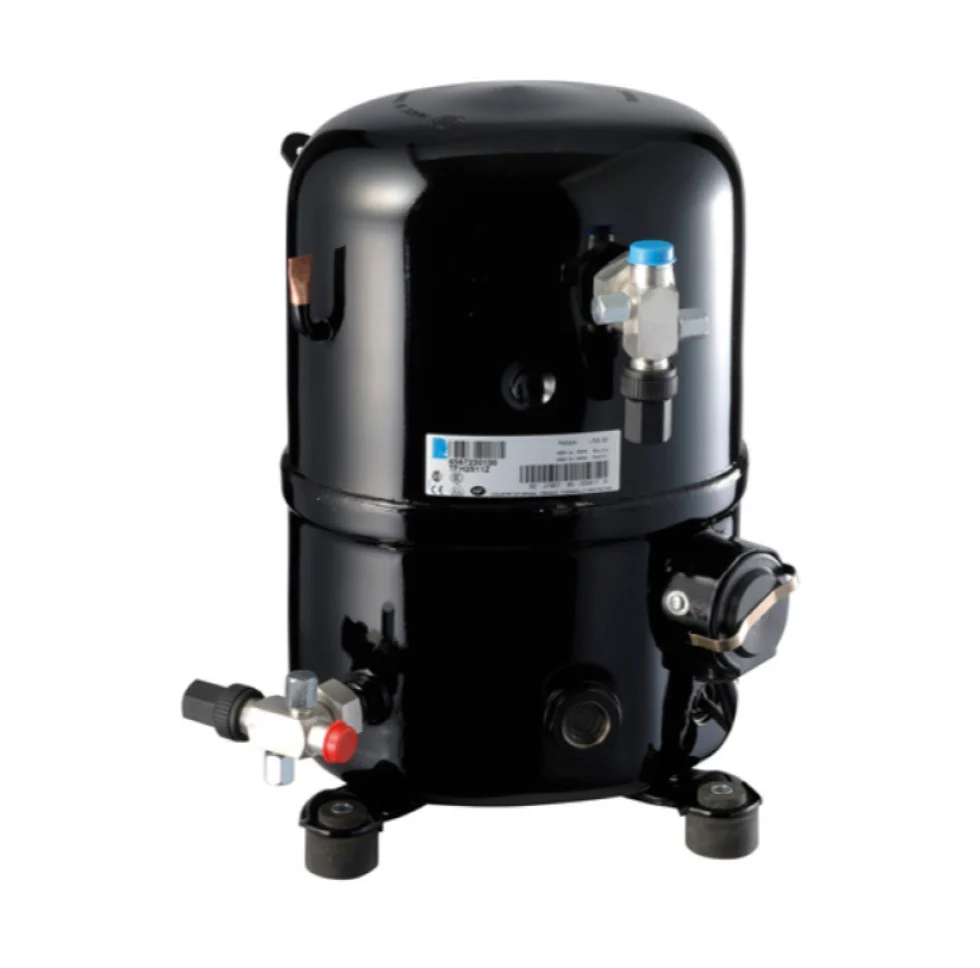

Commercial compressor rotolock valve R404/R507 2.5 Hp
SKU: FH2480Z
Available Stock: Out of Stock
Availability:
Out of stock
R404 / R507
Low back compressor
Freezing
220v 1 phase
R12,753.10 incl.VAT
Out of stock
Email when stock available
R404/ R507 low temp compressor . perfect for freezing appliances.
It was designed to replace R-502 and R-22 used in commercial refrigerator equipment for low and medium temperature ranges. Its properties make it ideal for use in display cases, refrigerated vehicles, ice makers, and other applications.
| Weight | 38 kg |
|---|---|
| Dimensions | 29 × 29 × 31 cm |
| Application : | LBP |
|---|---|
| Capacity at -10°C : | 4.42 kW |
| Capacity at -35°C : | 0.74 kW |
| Discharge Line Connection : | 1/2 in, 12.7 mm |
| Displacement : | 53.2 cm³ |
| Family : | FH |
| Height : | 354 mm |
| Horsepower : | 2-1/2 HP |
| LRA : | 68 A |
| Length : | 246 mm |
| Max Current : | 16.0 A |
| Max Power Input : | 1.7 kW |
| Model Number : | 2527030128 |
| Motor Type : | 1PH |
| Oil Charge : | 1330 cm³ |
| Oil Type : | POE |
| Phase : | 1 |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Power Supply Compressor : | 220-240/1/50 V/Ph/Hz |
| Product Group : | Â Low Temp 230V |
| R404A Cooling Capacity Rated -10°C : | 3.939 kW |
| R404A Nominal Capacity -25°C : | 1912 W |
| Refrigerant : | R404A, R507 |
| Suction Line Connection : | 5/8 in, 15.9 mm |
| Temperature Range : | -40 °C ~-12.2 °C |
| Voltage : | 220-240 V |
| Weight : | 37.241 kg |
| Width : | 200 mm |
