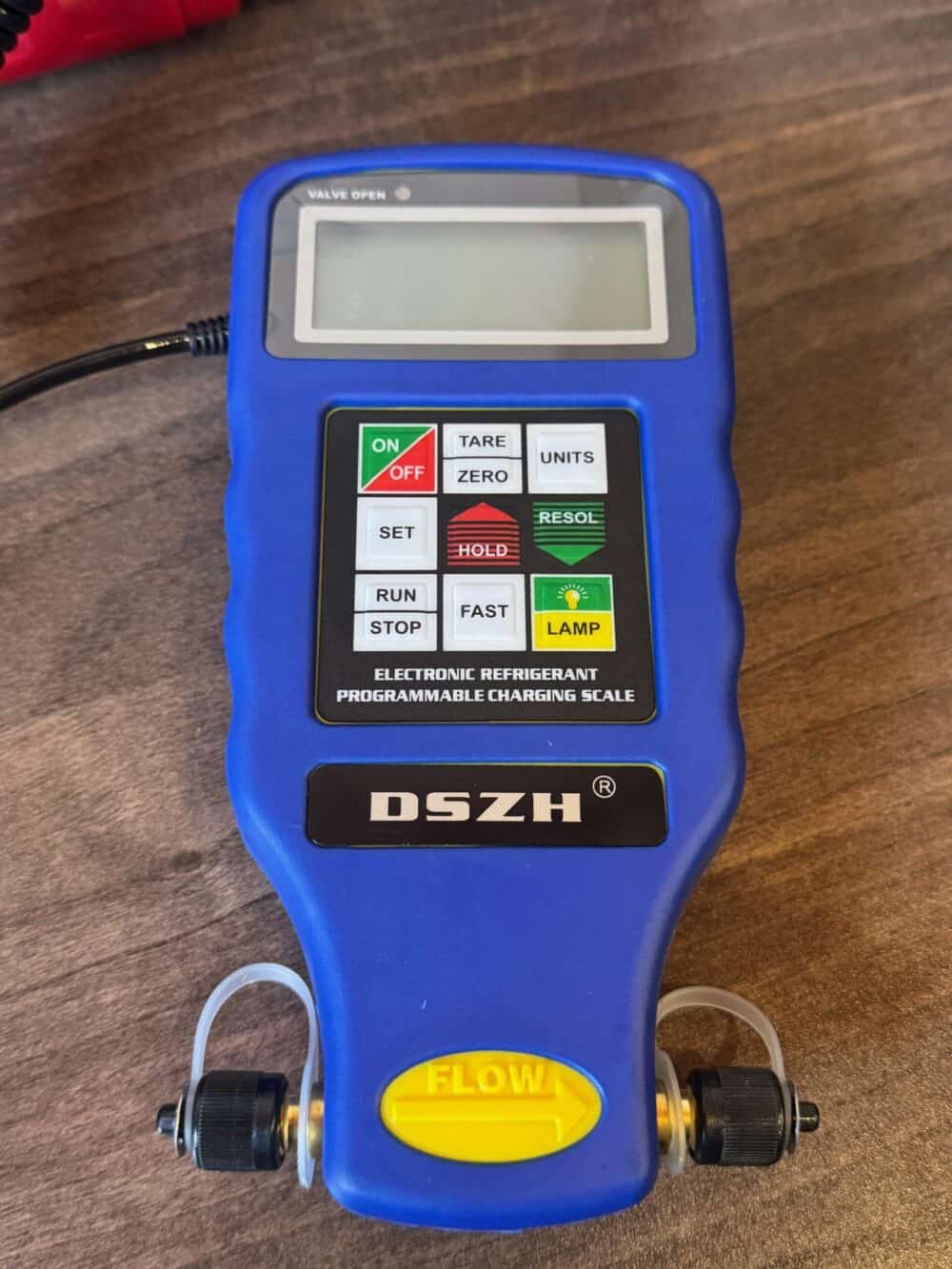

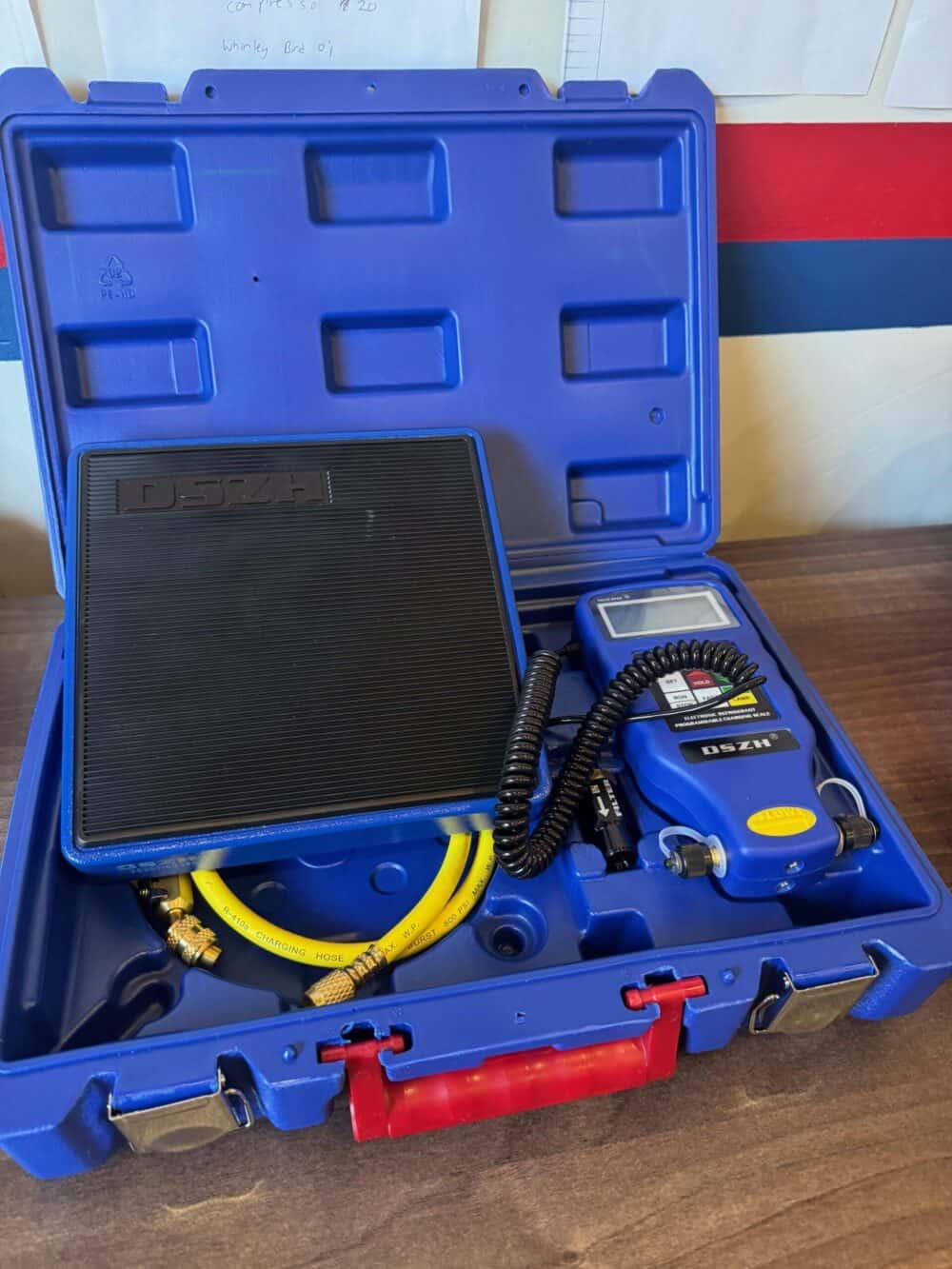

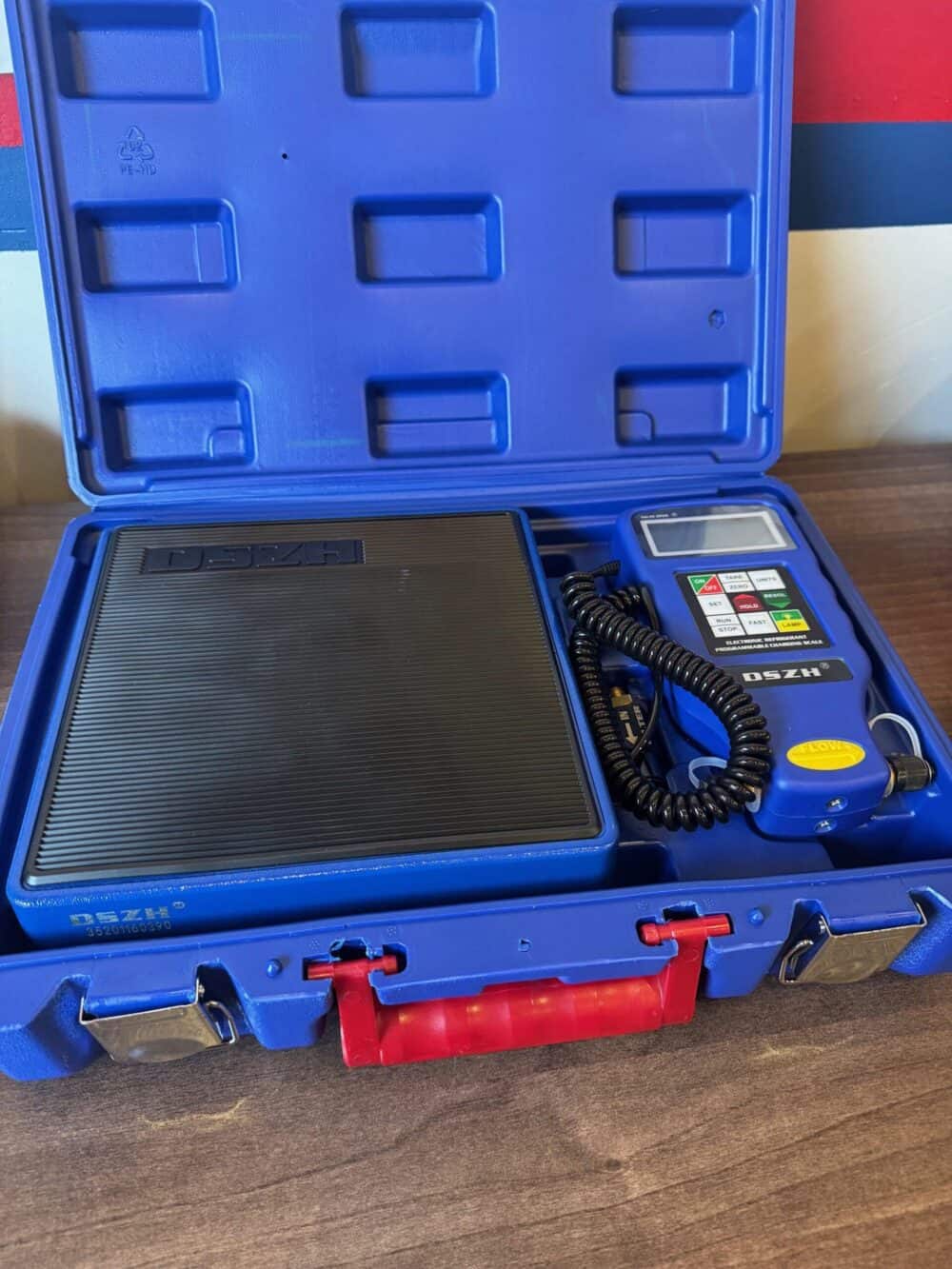

Charging scale 100kg with solenoid valve
SKU: RCS-N9030
Available Stock: Stock is Available
Charging Scale 100 KG with Solenoid valve
Model: RCS-N9030
Maximum weighing capacity: 100KGS / 220LB / 220LB.00.0OZ
Unit conversion: KGS/LBS/OZ
Accuracy: +/-0.5% of reading
Resolution: 0.25 OZ / 5G
Weighing pan size: 223*223mm
Power supply: 7.5VDC (DC 7.5V)
Battery life: 60 hours continuous use
Operating temperature: 50F – 122F (10°C – 50°C)
Weight: 2.74kg
Dimensions: 23.2cm * 23.2cm *5.8cm
Note: Battery not included
R4,738.00 incl.VAT
Charging scale 100kg with solenoid valve
100kg DSZH LCD display Large Flow Programmable Digital Refrigerant Charging Scale RCS-N9030
Operating steps:
Remove the product from the box and place it on a level, stable surface.
Press the ON/OFF button to turn on the scale.
Place the cylinder to be cooled in the center of the electronic scale tray.
Connect one end of the dosing tube to the ‘INLET’ and the other end to the refrigerant cylinder.
Connect one end of another dosing pipe to the other end of ‘OUTLET’ to connect to the air conditioning system or the refrigerant dosing valve.
Open a small amount of refrigerant cylinder switch to remove air from the filling tube
Press the ‘SET’ button, the LCD screen will automatically display zero
Increase/decrease the set weight by pressing the red/green arrow button repeatedly. If you press and hold the red/green arrow button for 5 seconds, it will speed up/decrease the set weight. After setting the weight, press ‘ RUN/STOP ’ to start adding liquid, and stop automatically after adding liquid.
Press the SET button once and the scale returns to the weighing mode.
A refrigerant weight scale is an essential piece of equipment for an HVAC technician to have. A refrigerant weight scale is specifically meant to help install and maintain air conditioning units, measuring the weight of refrigerants when they are removed from an air conditioning unit’s compressor. Recharging scale
Charging scale 100kg with solenoid valve
| Weight | 4 kg |
|---|---|
| Dimensions | 45 × 11 × 34 cm |
er=”0″ cellspacing=”0″ cellpadding=”2″><tbody>
| Item | RCS-N9030 |
| Capacity | 100KGS/220LB/220LB.00.0OZ |
| Units | KGS/LBS/OZ |
| Accuracy | 0.5% OF READING +/-1 LEAST |
| Resolution | ±0.25 OZ/5G |
| Platform Size | 8-3/4″x8-3/4″223x223mm |
| Power | 5×1.5V ALKALINE BATTERY(7.5VDC) |
| Battery Life | 60 HOURS CONTINUOUS USE |
| Operation Temperature | 10ºC-50ºC(50F-122F) |
| Weight | 2.74KG(6.03 IBS) |
