Cable Locator MT195
SKU: MT195
Available Stock: Stock is Available
- Detects cables, electrical wires, water/gas supply pipelines concealed in walls and ground
- Detects interruptions and short circuits in cables and concealed electrical wires
- Tracing sockets and distribution sockets having accidentally been covered by plastering
- The transmitter measures voltage from 12V to 400V AC/DC
- The screen of transmitter displays preset transmitting power, transmitted codes and voltage
- Transmitter has self-inspection displaying status on LCD
- Both transmitter and receiver have flashlight function
- Output signal 125kHz
- Detects interruptions and short circuits in floor heating
- The LCD of receiver displays preset transmitting power, transmitted codes and voltage
- The sensitivity of the receiver can be adjusted manually or automatically
- The receiver can sweep frequency automatically
- Identifies fuses and assigned current circuits
- Mute mode can be set for both the transmitter and receiver
- Auto Power Off
- Additional transmitters are available to extend or verify several functions
2 Year Limited Warranty
Accessories:
- Carrying Case & Shoulder Strap
- Test Leads
- Test Probe

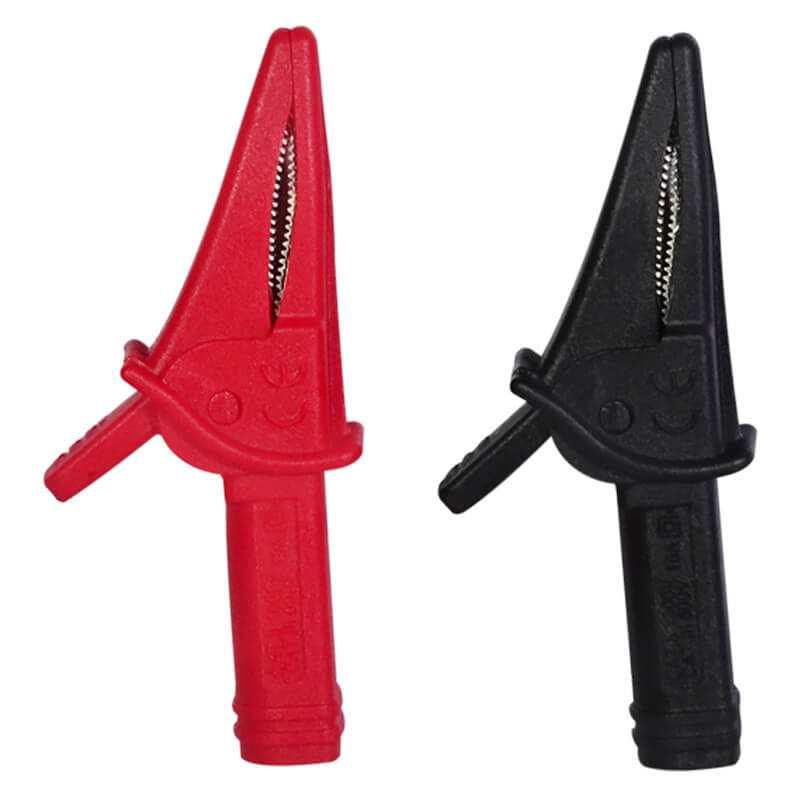

- Croc Clips
- Grounding Rod
- Batteries
- Instruction Manual
R9,995.00 incl.VAT

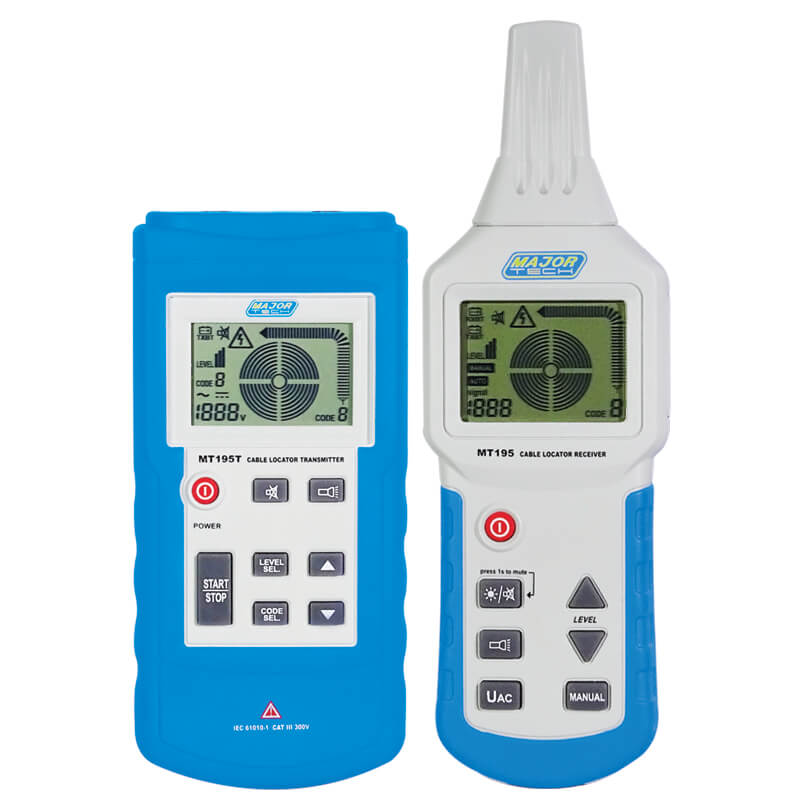

Cable Locator MT195
The MT195 Cable Locator is the ideal tool to detect electrical power cables, communication cables, metal pipes and much more during construction, maintenance or renovations. Pinpoint pipes and cables in walls or underground with precision by identifying the corresponding signal number sent by the transmitter. The transmitter and receiver with their advanced digital circuit technologies ensures a highly stable and reliable performance. The transmitter sends signals and it can be used as an AC/DC voltmeter that displays the voltage on the tested line.
When testing on electrical circuits, the receiver can quickly identify circuit breakers. In the distribution board of the circuit the transmitter is connected to or vise versa. The receiver displays the value of the signal measured. It can be used to check short circuits or breaks on existing installations. It is ideal for underfloor heating systems. The MT195 set is lightweight and, for direct measurement, is supplied with a complete set of accessories.
See Also our Bluetooth Handheld Multifunction Tester MT329
See our full range of major tech testers
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 15 × 15 cm |
Specifications:
| Function | Range | Accuracy |

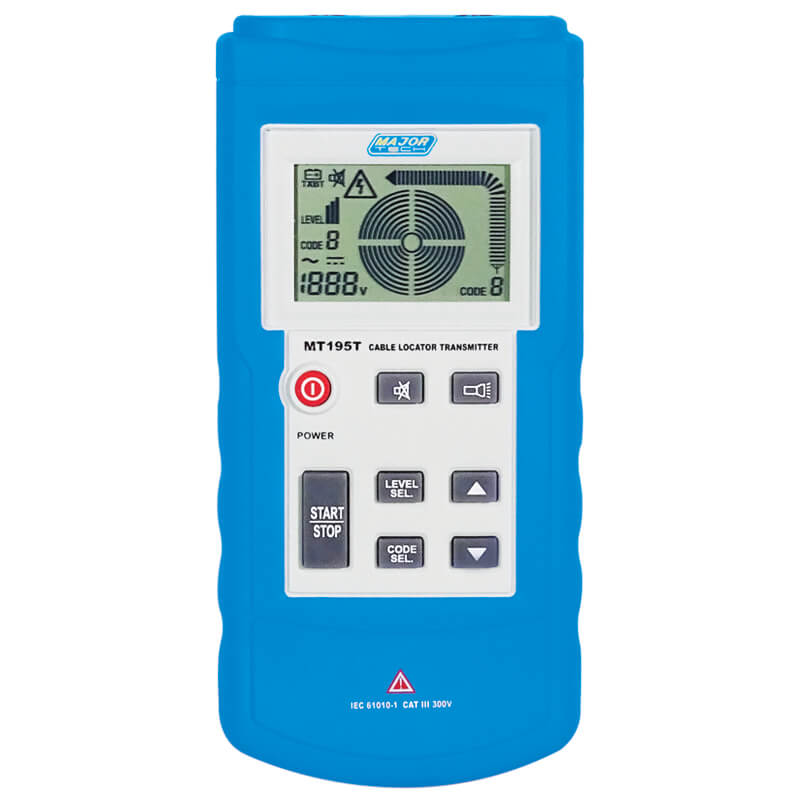

| Transmitter functions | ||
| Output Signal | 125kHz | |
| External Voltage Range | DC 12-400V | ±2.0% |
| AC 12-400V (50/60Hz) | ±2.5% | |
| Display | LCD, with function display and column chart | |
| External Voltage Dielectric Strength | Max. 400V AC/DC | |
| Batteries | 9V | |
| Weight | 420g | |
| Dimensions | 190 x 89 x 43mm | |

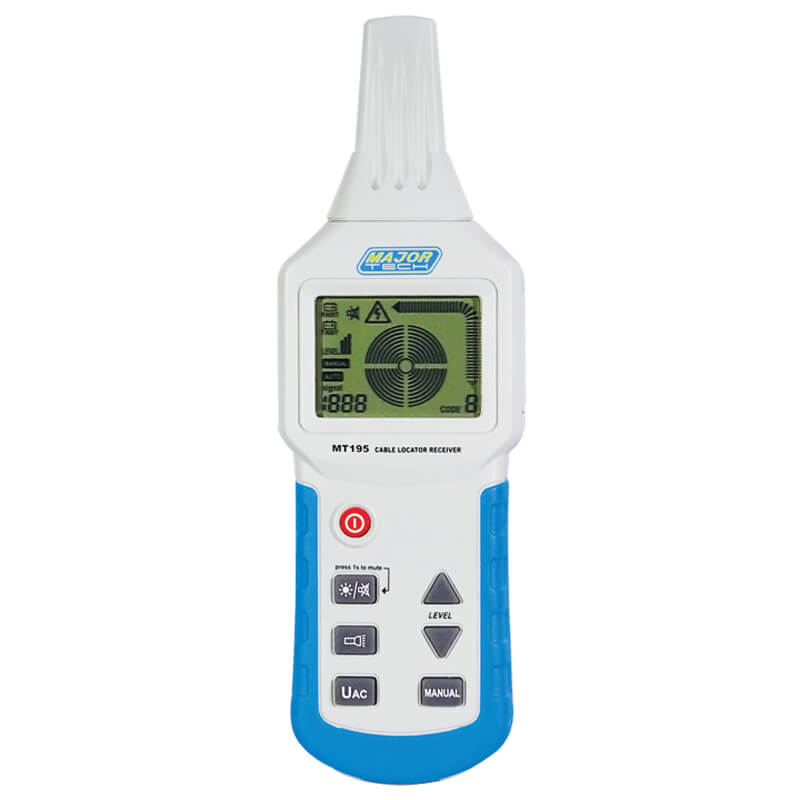

| Receiver functions | ||
| Depth of Tracking | Depth depends on the material specific applications | |
| Cable Locating Mode Single Pole | About 0 – 2 meters | |
| Cable Locating Mode Dual Pole | About 0 – 0.5 meters | |
| Cable Locating Single Loop Line | Up to 2.5 meters | |
| Display | LCD, with function display and column chart | |
| Batteries | 6 x AAA | |
| Weight | 350g | |
| Dimensions | 242 x 78 x 39mm | |
| Safety Specs | CAT III 300V | |
